Some of the functionality in the web GUI only display if you have the iLO 2 Advanced Pack license.
For more information on the iLO 2 Advanced Pack license, see “Obtaining and Activating iLO 2
Advanced Pack Licensing” (page 23) and the HP website at:
http://h71028.www7.hp.com/enterprise/cache/279991-0-0-0-121.html
NOTE: Cookies must be enabled on the web browser in order to successfully login to the iLO 2
web GUI.
System Status
The System Status tab enables you to access the following pages:
• Status Summary: General, Active Users, and FW Revisions
• Server Status: General and Identification
• SEL
Status Summary > General
The Status Summary General page (Figure 15) displays a brief status summary of the system.
NOTE: Depending on your server, this page might look slightly different.

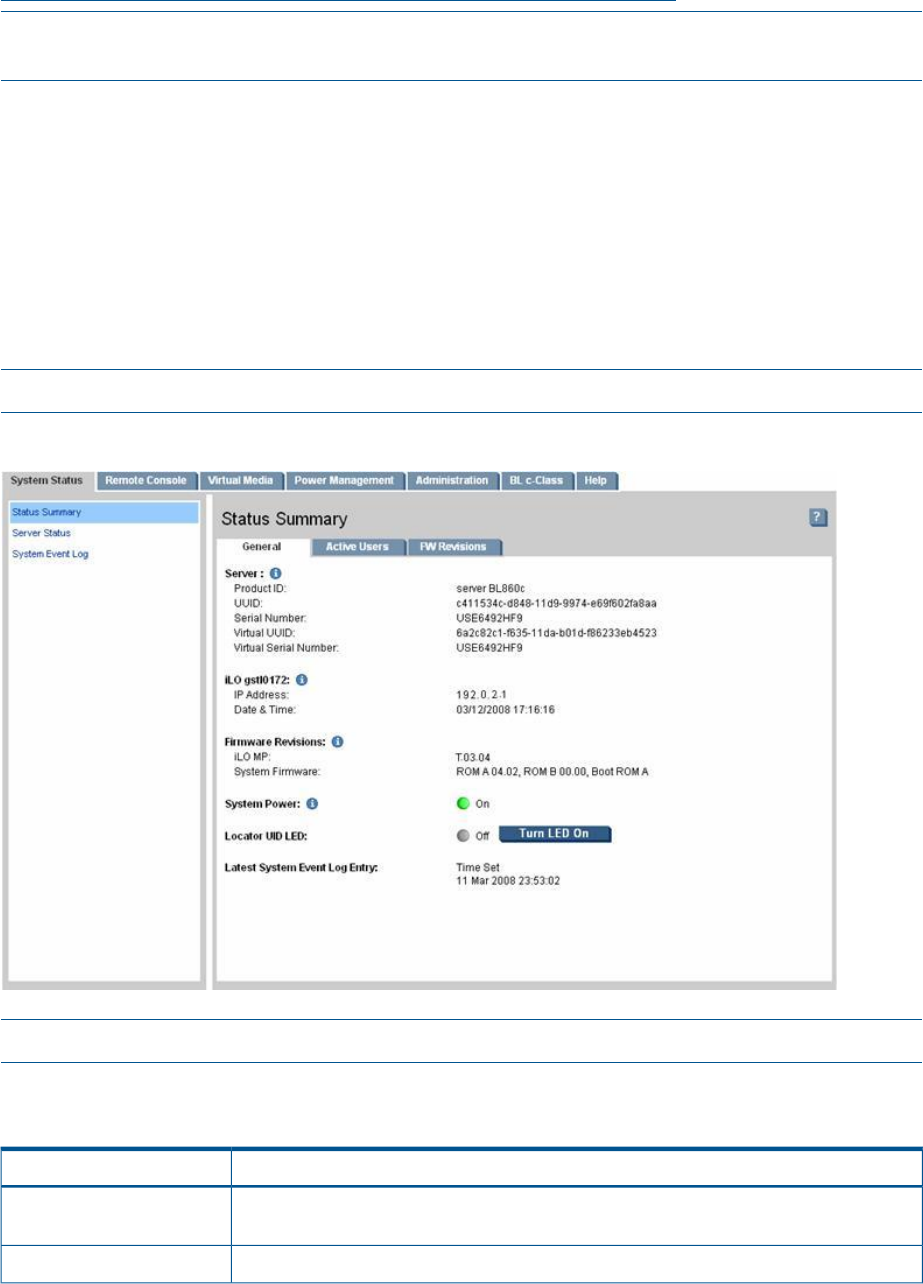

Figure 15 Status Summary General Page
NOTE: The BL c-Class tab is available only on HP Integrity server blades.
Table 31 lists the fields and descriptions.
Table 31 Status Summary General Page Description
DescriptionField
The current power state (ON/OFF/STANDBY) of the system and the corresponding power
LED state.
System Power
The most recent entry in the SEL.Latest SEL Entry
