Table 31 Status Summary General Page Description (continued)
DescriptionField
Displays the current firmware revisions for iLO MP, BMC, EFI, system firmware, PDH,
UCIO, PRS, and PMPIC for entry class server blades.
Firmware Revisions
The IP address of the iLO 2 subsystem.iLO 2 MP IP Address
Displays the date and time as known to the iLO 2.Date & Time
Displays the status of the blue locator or UID LED and enables you to turn the Locator
LED on or off.
Note: The system's (Yellow) attention LED, which is separate from the locator LED, is lit
automatically if a Warning event is present in the SEL. To clear the attention LED, read
the SEL.
Locator UID LED
Status Summary > Active Users
The Active Users page (Figure 16) displays information about the users currently logged in to iLO
2.
NOTE: Depending on your server, this page might look slightly different.

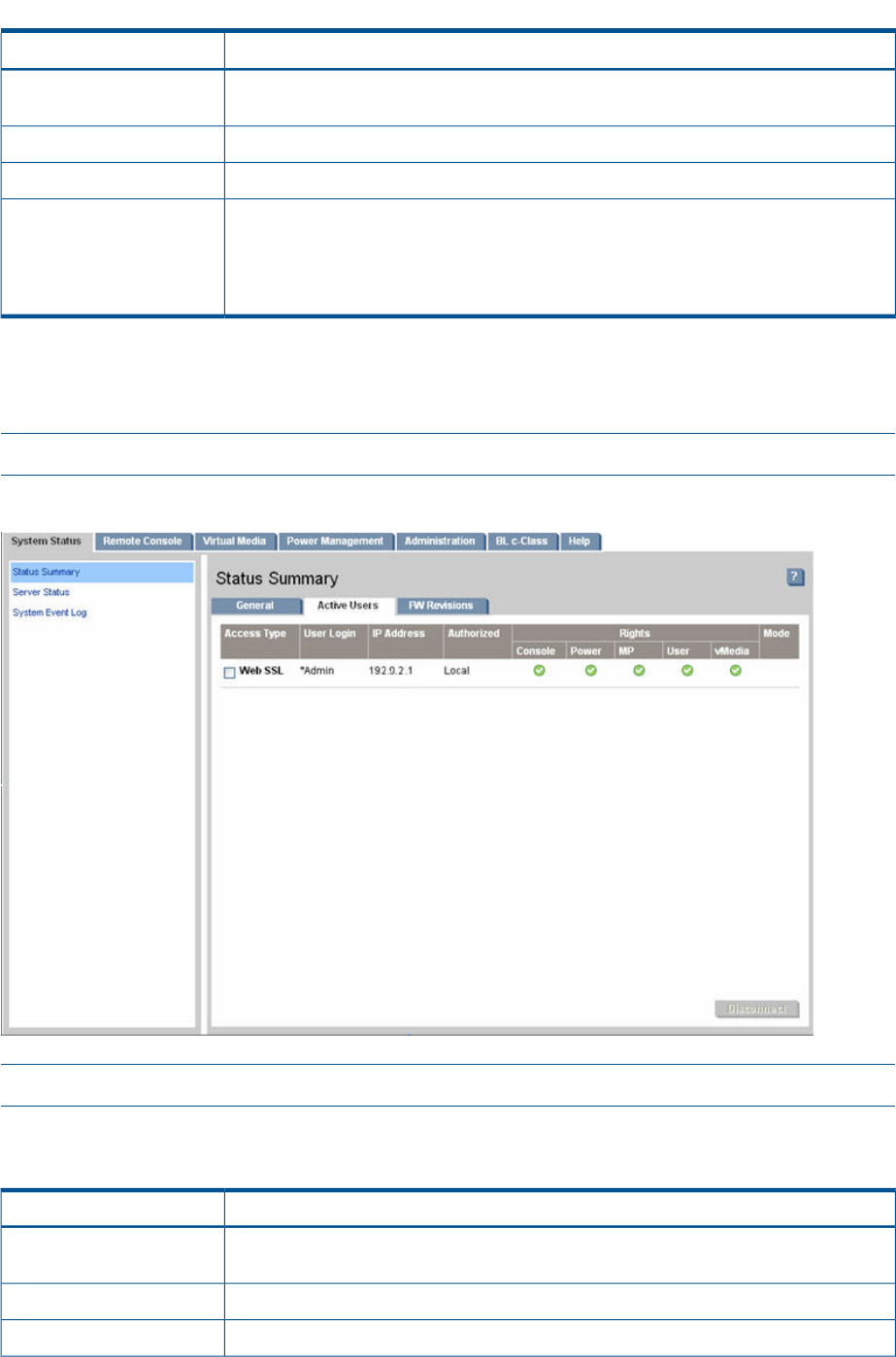

Figure 16 Status Summary Active Users Page
NOTE: The BL c-Class tab is available only on HP Integrity server blades.
Table 32 lists the fields and descriptions.
Table 32 Active Users Page Description
DescriptionField
Multiple access methods are available: Serial, Telnet, SSH, SSL web or IPMI over LAN.
IPMI, vMedia, and IRC/vKVM users are not listed in web GUI sessions.
Access Type
The user currently logged in through a particular access type.User Login
The IP address of the active user.IP Address
