Table 32 Active Users Page Description (continued)
DescriptionField
The type of authentication: LDAP directory user authentication (LDAP) or locally stored
iLO 2 user accounts (local).
Authorized
Rights control the iLO 2 functions a user can perform. There are five user access rights:
console access, MP configuration, power control, virtual media, and user administration.
A user can be configured to have some, none, or all the access rights.
Rights
Current iLO 2 mode that the user is in. TUI modes are: MA, MP Main Menu; CM, MP
Command menu; CO, console; LIVE, Live event viewer; VFP, VFP mode.
Mode
Enables a user with sufficient privileges to disconnect users of a certain access type.Disconnect
Status Summary > FW Revisions
The FW Revisions page displays current revisions of the system firmware.
NOTE: Depending on your server, this page might look slightly different.

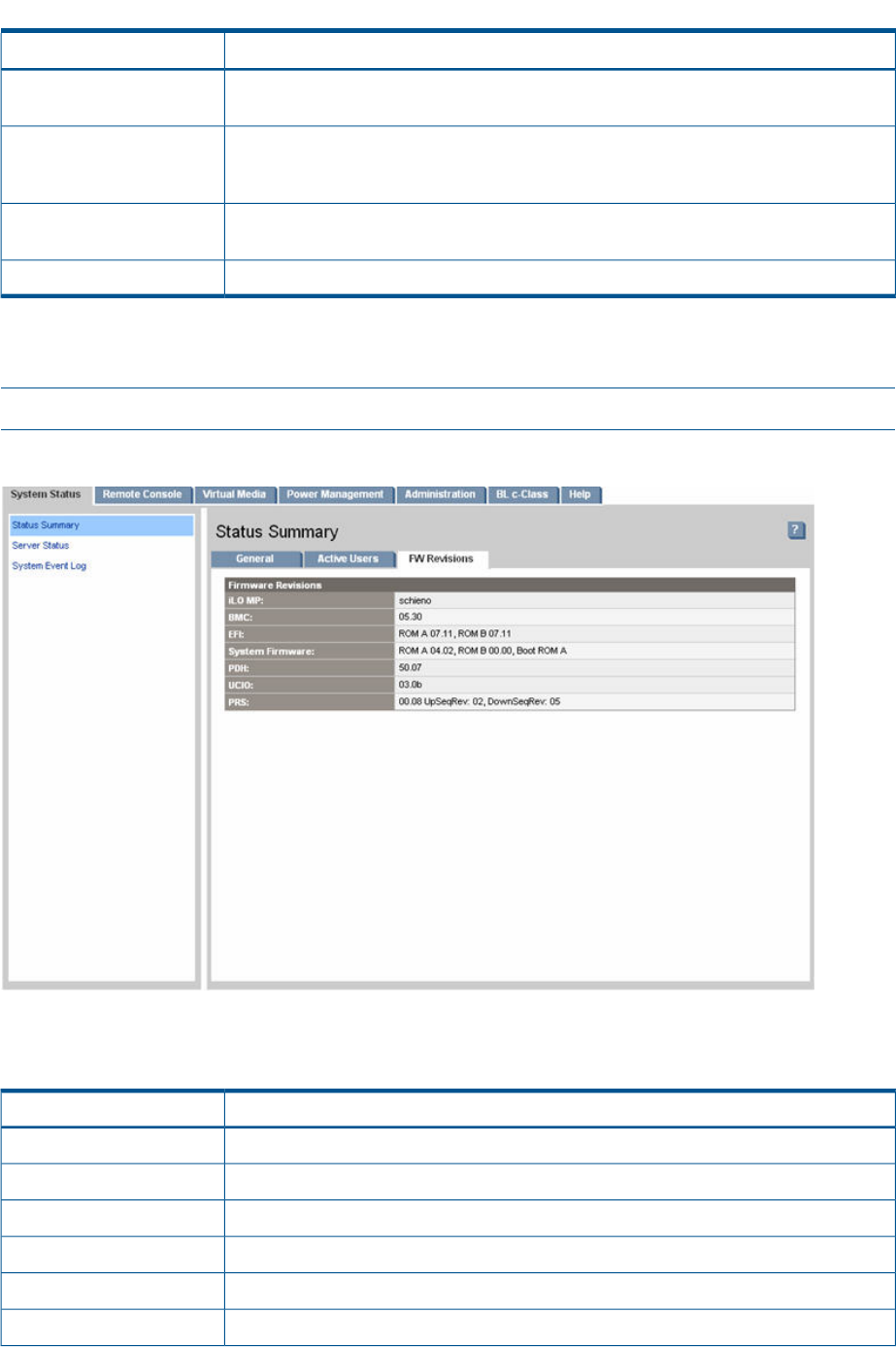

Figure 17 FW Revisions Page
Table 33 lists the fields and descriptions.
Table 33 FW Revisions Page Descriptions
DescriptionField
iLO Management Processor firmware versioniLO MP
Base Management Controller firmware versionBMC
Extensible Firmware Interface firmware versionEFI
System platform firmware versionSystem Firmware
Platform Dependent programmable Hardware versionPDH
Universal Core I/O firmware versionUCIO
