Table 33 FW Revisions Page Descriptions (continued)
DescriptionField
Power Reset SequencerPRS
Power Management Programmable Interrupt Controller for entry class server bladesPMPIC
Server Status > General
The Server Status General page (Figure 18) displays the status of server components. It also
displays the status of the system processors and which processor is the monarch.
NOTE: Depending on your server, this page might look slightly different.

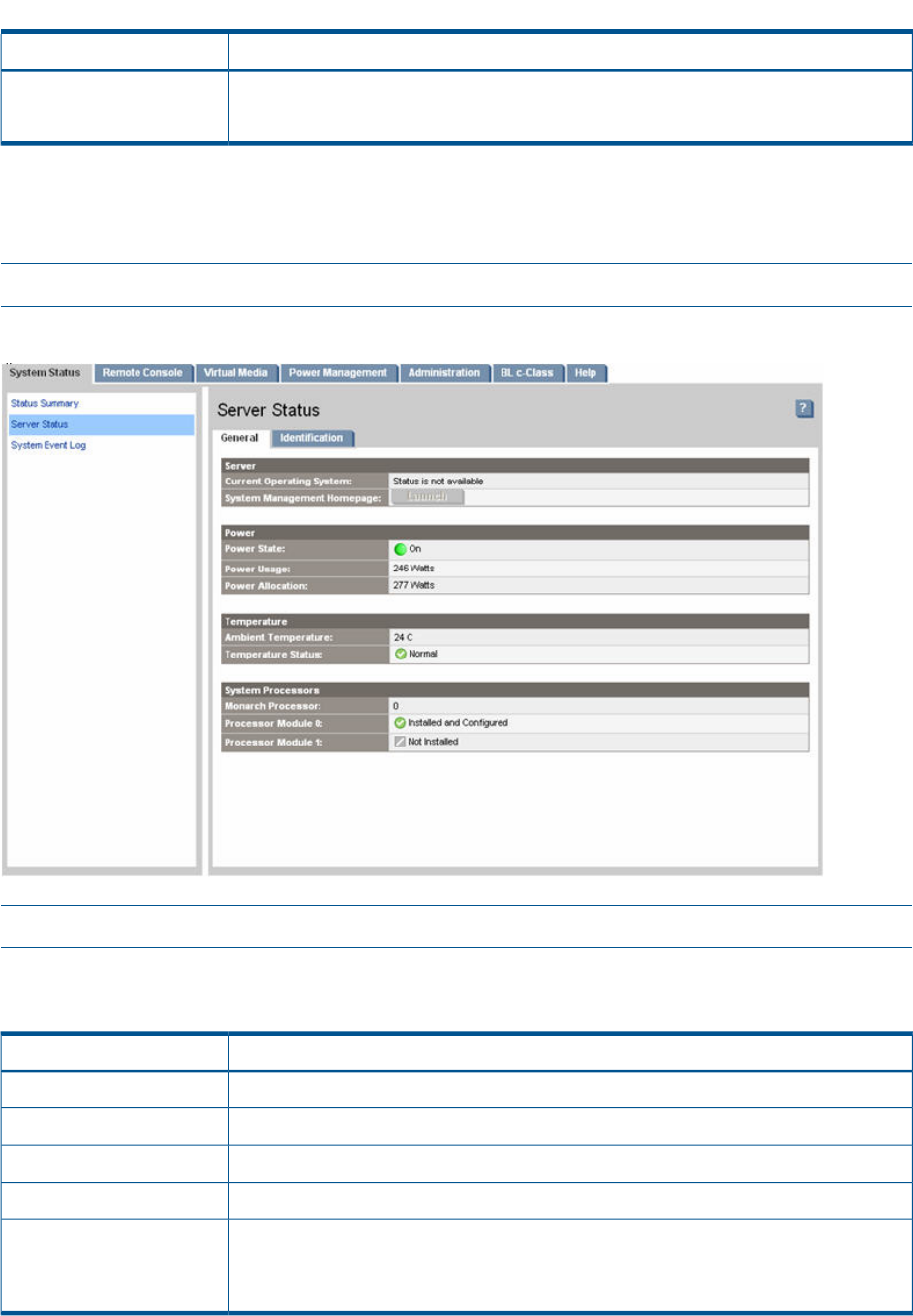

Figure 18 Server Status General Page
NOTE: The BL c-Class tab is available only on HP Integrity server blades.
Table 34 lists the fields and descriptions.
Table 34 Server Status General Page Description
DescriptionField
Displays the current power state of the system and the corresponding power LED state.System Power
Displays the temperature status.Temperature
Lists the power supplies and their status and type.Power Supplies
Lists the fans and fan status.Fans
Displays the status of the processor.
NOTE: For BL c-Class servers, you can obtain information on power supplies and fans
through the OA. See “BL c-Class” (page 139).
System Processors
Server Status > Identification
The Identification page enables you to configure system information for identifying the server.
104 Using iLO 2
