1: Major forward progress
2: Informational
3: Warning
5: Critical
7: Fatal
Remote Serial Console
The Remote Serial Console page (Figure 21) enables you to securely view and manage a remote
server. You must have console access right to use this feature.
You can also connect to the system console by launching View Console from the Remote Serial
Console page.
NOTE: Depending on your server, this page might look slightly different.

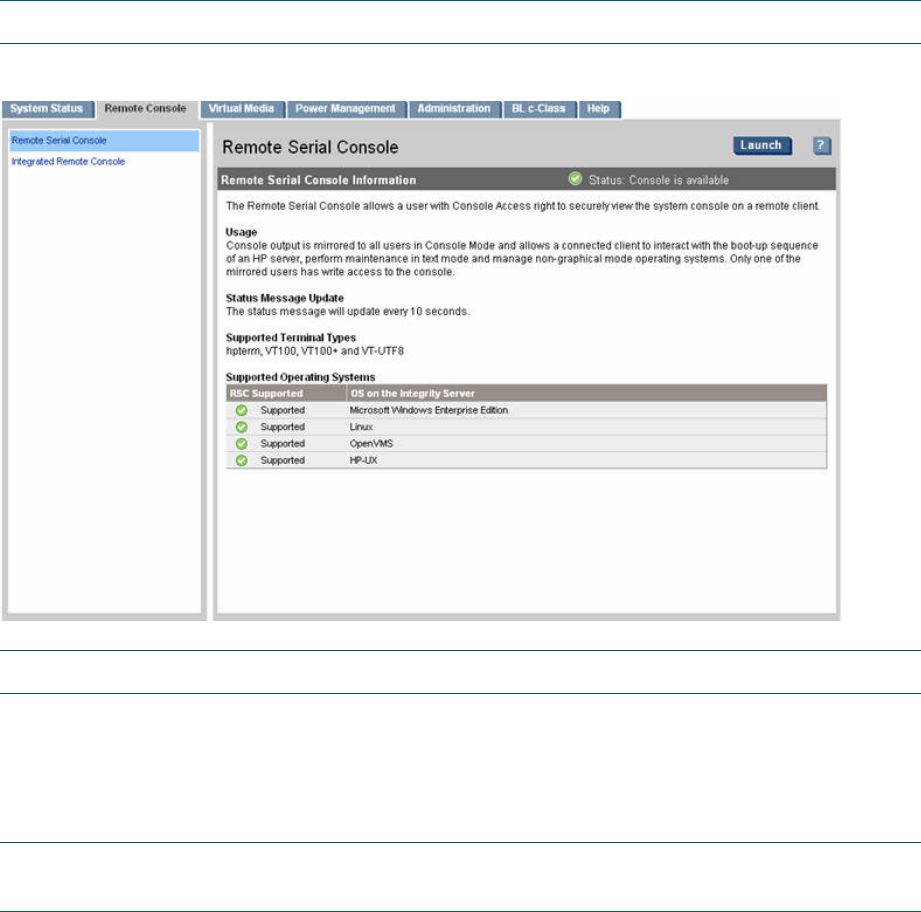

Figure 21 Remote Serial Console Page
NOTE: The BL c-Class tab is available only on HP Integrity server blades.
The remote serial console is a Java applet that requires Java Plug-in 1.4.2-10 to be installed on
the client system. This applet enables connection to the server serial console over default port 2023.
You can configure this port through the Administration > Access Settings page. All data on this
port is encrypted using RC4. The remote serial console provides terminal emulation. Remote serial
console operates with all the operating systems and browsers supported by iLO 2.
NOTE: Pop-up blocking applications prevent remote serial console from running. Disable any
pop-up blocking applications before starting the remote serial console.
The iLO 2 mirrors the system console to the iLO 2 MP local, remote, and LAN ports. One console
output stream is reflected to all of the connected console users. If several different terminal types
are used simultaneously by the users, some users may see unexpected results. Only one of the
mirrored users at a time has write access to the console. Write access is retained until another user
requests console write access. To get console write access, enter Ctrl-Ecf.
Web GUI 107
