To ensure proper operation of the remote serial console, verify the following conditions:
• Your emulator can run the supported terminal type.
• The iLO 2 terminal setting in the applet is a supported setting.
• The operating system environment settings and your client terminal type are set properly.
• All mirrored consoles are of the same terminal type for proper operation. Supported terminal
types are:
Table 37 Supported Terminal Types
EFILinuxWindowsHP-UX
NSNSNSXhpterm
XXNSXVt100
XXNSNSVt100+
XNSXNSVt-utf8
IMPORTANT: Do not mix hpterm and vt100 terminal types at the same time. If there are two
users collaborating and viewing console output with different emulation modes set, their clients
will see garbled results if the output from the system is terminal specific.
To connect to the system console (Figure 22), click Launch.
NOTE: If Launch is disabled, the user does not have console access right. See the User
Administration page under the Administration tab to add the access right.

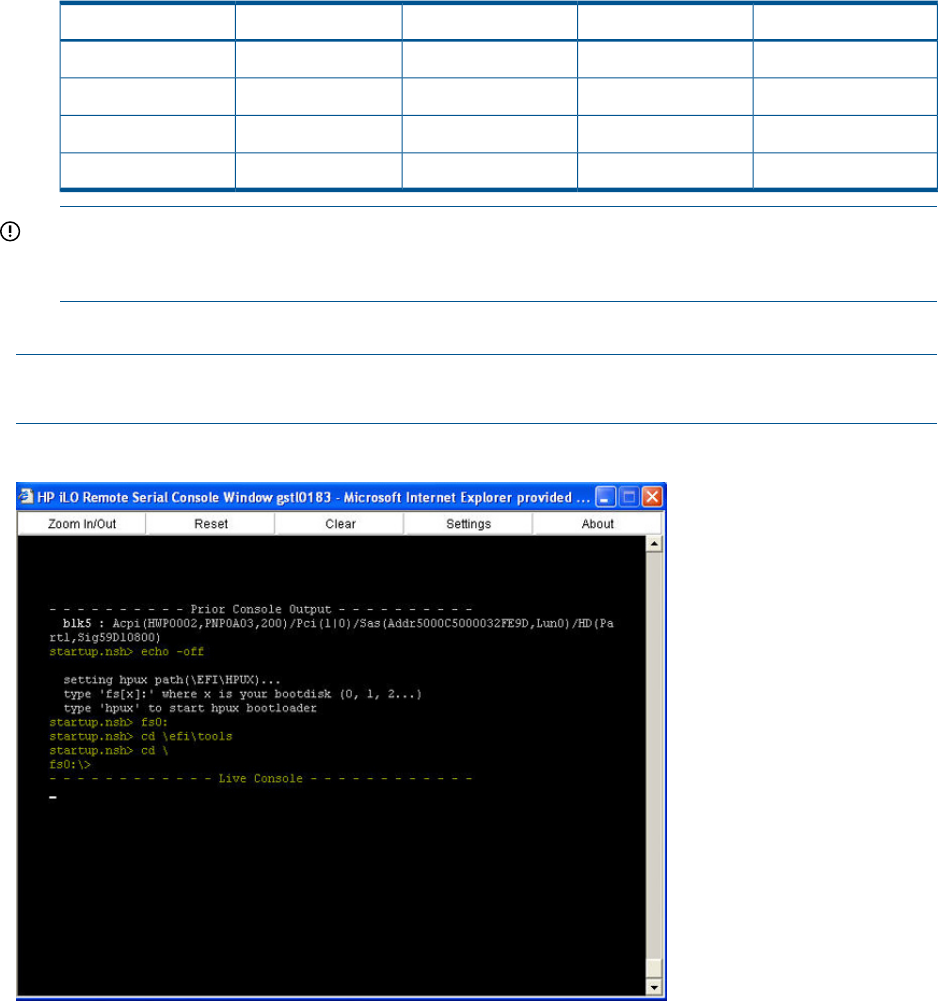

Figure 22 Remote Serial Console Window
Using this feature you can do the following:
• View and interact with the boot sequence of your server.
• Perform maintenance activities in text mode.
• Manage non-graphical mode operating systems.
