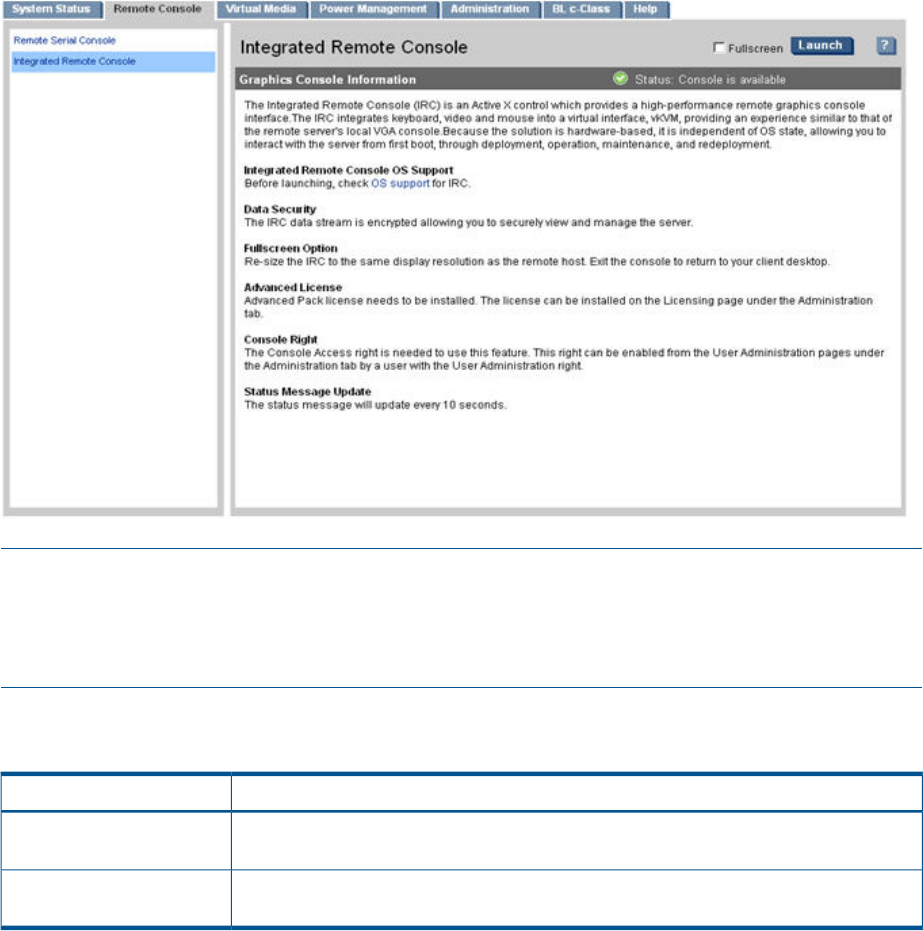

Figure 23 Integrated Remote Console Page
NOTE: The BL c-Class tab is available only on HP Integrity server blades.
To access the IRC, select Remote Console > Integrated Remote Console and click Launch. The IRC
might experience a slight delay as it first loads on your browser.
The IRC page refreshes every 10 seconds.
Table 38 lists the fields, buttons, and actions.
Table 38 IRC Page Description
ActionFields and Buttons
Resizes the IRC page.
For fullscreen with multi-head client, launch the browser from the primary display.
Fullscreen
Resizes the IRC page to the same display resolution as the remote host. To open the
server’s graphic console in a new browser window, click Launch.
Launch
The IRC displays the host server’s graphics console (Figure 24).
