NOTE: This feature requires that the Java Plug-in 1.4.2 or 1.5 is installed.
This feature requires the vMedia right and the Advance Pack License. For more information, see
“Obtaining and Activating iLO 2 Advanced Pack Licensing” (page 23). If a user does not have
the vMedia right, it can be granted from the User Administration page under the Administration
tab by a user with Admin privileges.
To use a physical CD/DVD drive in your client system:
1. Select Virtual Media. The Virtual Media content page appears.
2. Click Launch to load the applet and connect to USB CD/DVD devices and disk image files
available on the client as virtual devices on the server. The vMedia applet appears (Figure 26).
NOTE: Only one user and one device can be connected at a time.
IMPORTANT: Only CD and DVD-ROM image files are supported.
If you use a USB key image file, you must select the Floppy/USB Key option. The USB key
image file is not interchangeable with the CD or DVD-ROM and vice versa.

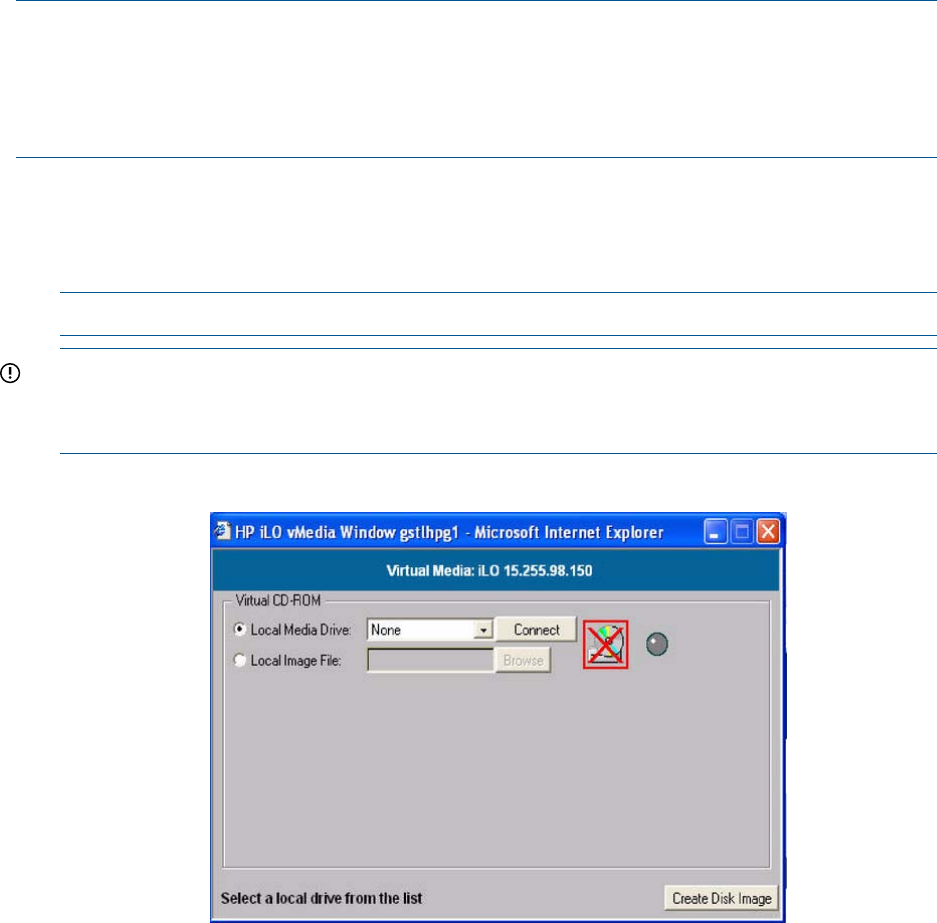

Figure 26 Virtual Media Dialog Box (Before Connection)
3. Select Local Media Drive.
4. Select the drive letter of the desired physical CD/DVD drive on your client system from the
list.
