The HP server ROM provides support during server boot for vMedia with the El Torito bootable
CD format.
You can view the list of supported operating systems on the HP website at http://www.hp.com/
go/integrityilo.
Java Plug-in Version
The vMedia feature requires prior installation of Java Plug-in 1.4.2_10 or higher.
Client Operating System and Browser Support for vMedia
You can view the list of supported client operating systems on the HP website at http://
www.hp.com/go/integrityilo.
Power Management
For entry class and server blades, the iLO 2 power management feature enables you to view and
control the power state of the server, monitor power usage, monitor the processor, and modify
power settings. The Power Management page has three menu options:
• Power & Reset
• Power Meter Readings
• Power Regulator
Power & Reset

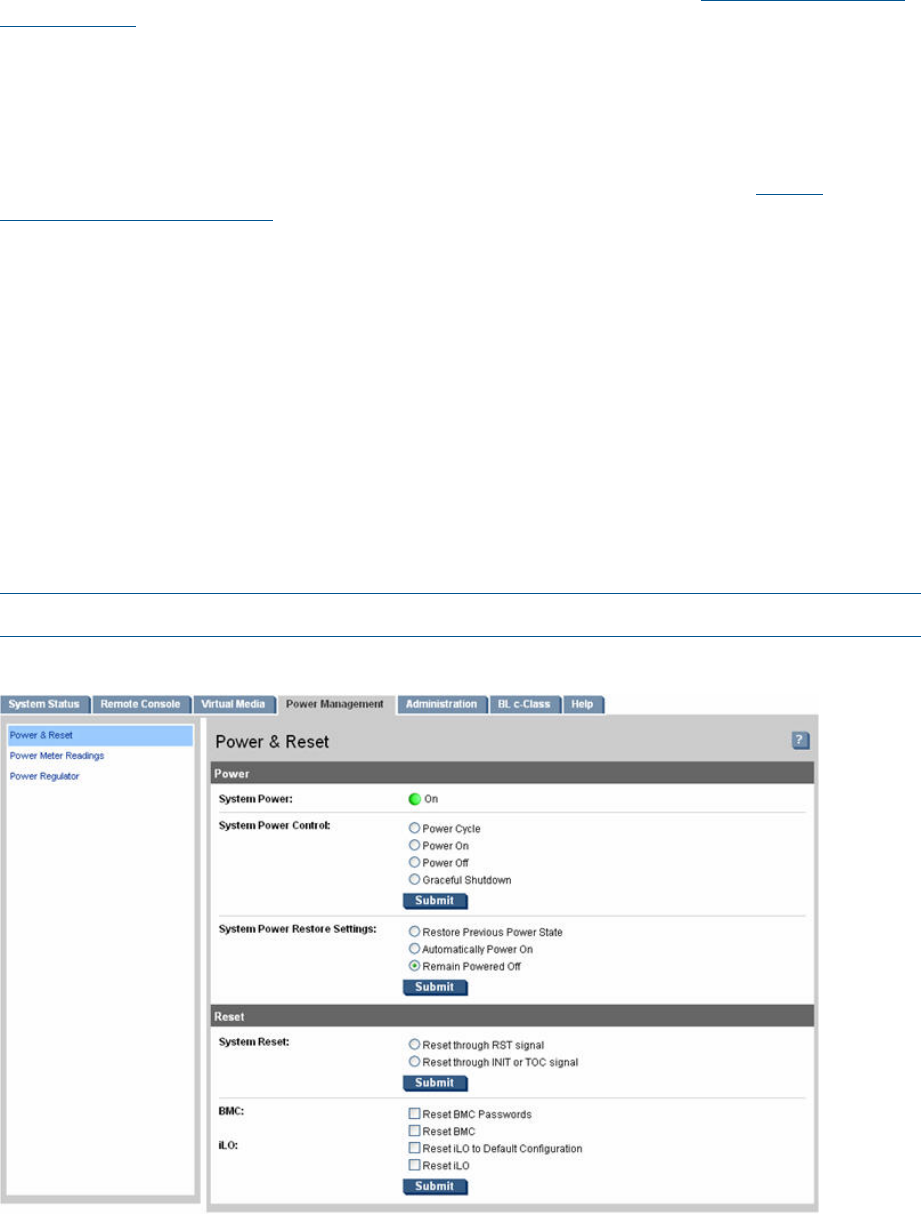

The Power & Reset page (Figure 31) enables you to view and control the power state of the server.
It also provides you with options to reset the system, the BMC, or iLO 2.
NOTE: Depending on your server, this page might look slightly different.
Figure 31 Power & Reset Page
122 Using iLO 2
