Table 40 Power & Reset Page Description (continued)
DescriptionFields and Buttons
This feature has the following options:iLO 2
• Reset to the iLO 2 default configuration: This option enables you to set all iLO 2
parameters back to their default values. You must have iLO configuration access right
to issue this option.
• Reset the iLO 2: This option enables you to reset the iLO 2. You can safely perform
an iLO 2 reset without affecting the operation of the server. You must have iLO
configuration access right to issue this option.
Click to submit selections.Submit
Power Meter Readings
The Power Meter Readings page (Figure 32) enables you to graphically view and monitor server
power usage, temperature, and power regulator settings.
Power meter readings is a licensed feature and requires the Advanced Pack license to see the
Power Regulator graphs from the iLO 2 web GUI. The license key also enables iLO 2 to share
information with Insight Power Manager.
NOTE: You can obtain an instant power reading without a license key through the CLI using the
PS command.
The Power Meter Readings page has two sections: Power Meter Readings and 24-hour Power
History.
NOTE: Depending on your server, this page might look slightly different.

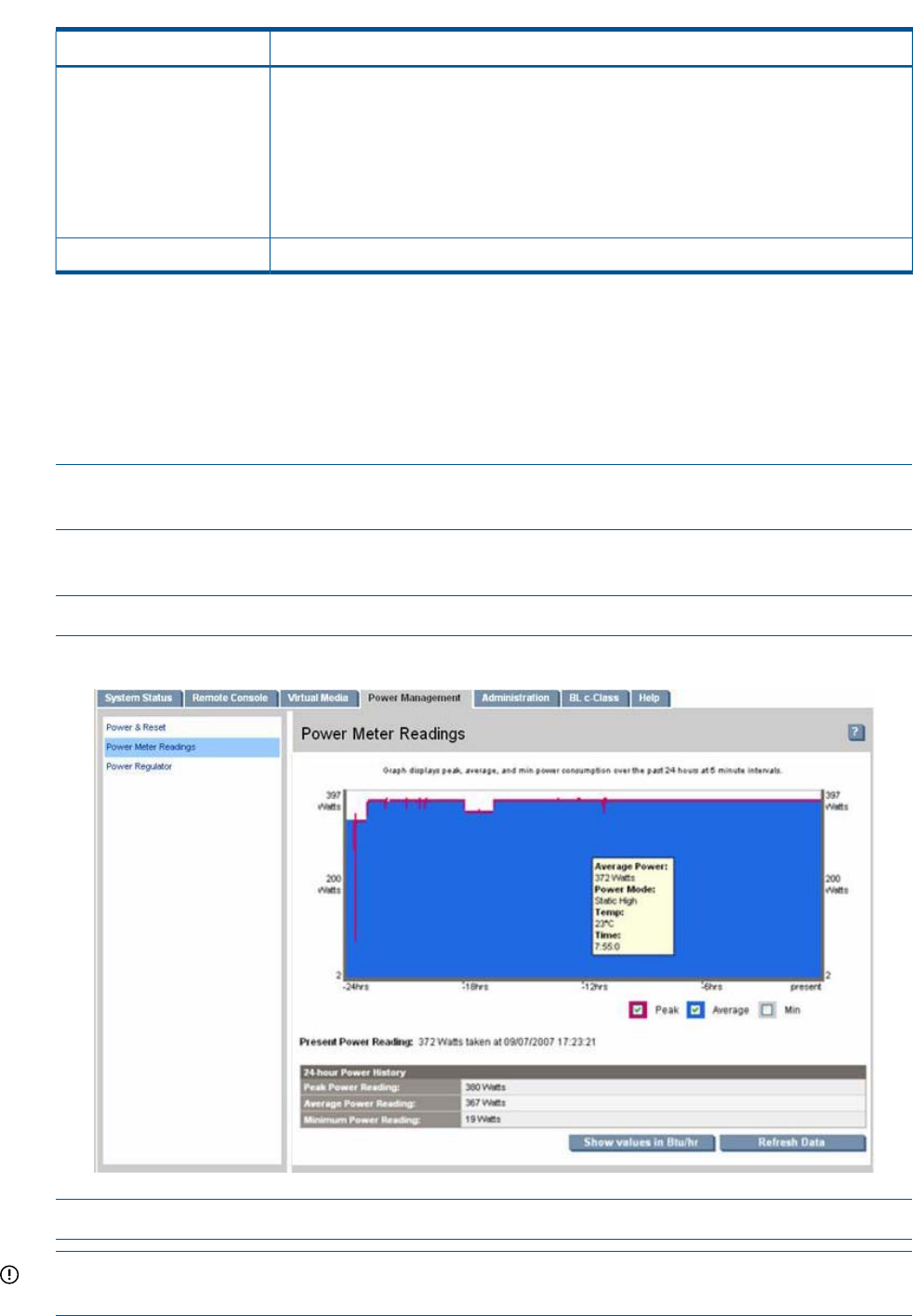

Figure 32 Power Meter Readings Page
NOTE: The BL c-Class tab is available only on HP Integrity server blades.
IMPORTANT: Power consumption data readings are dependent on the configuration, architecture,
components, and levels of activity of the server at any given time.
