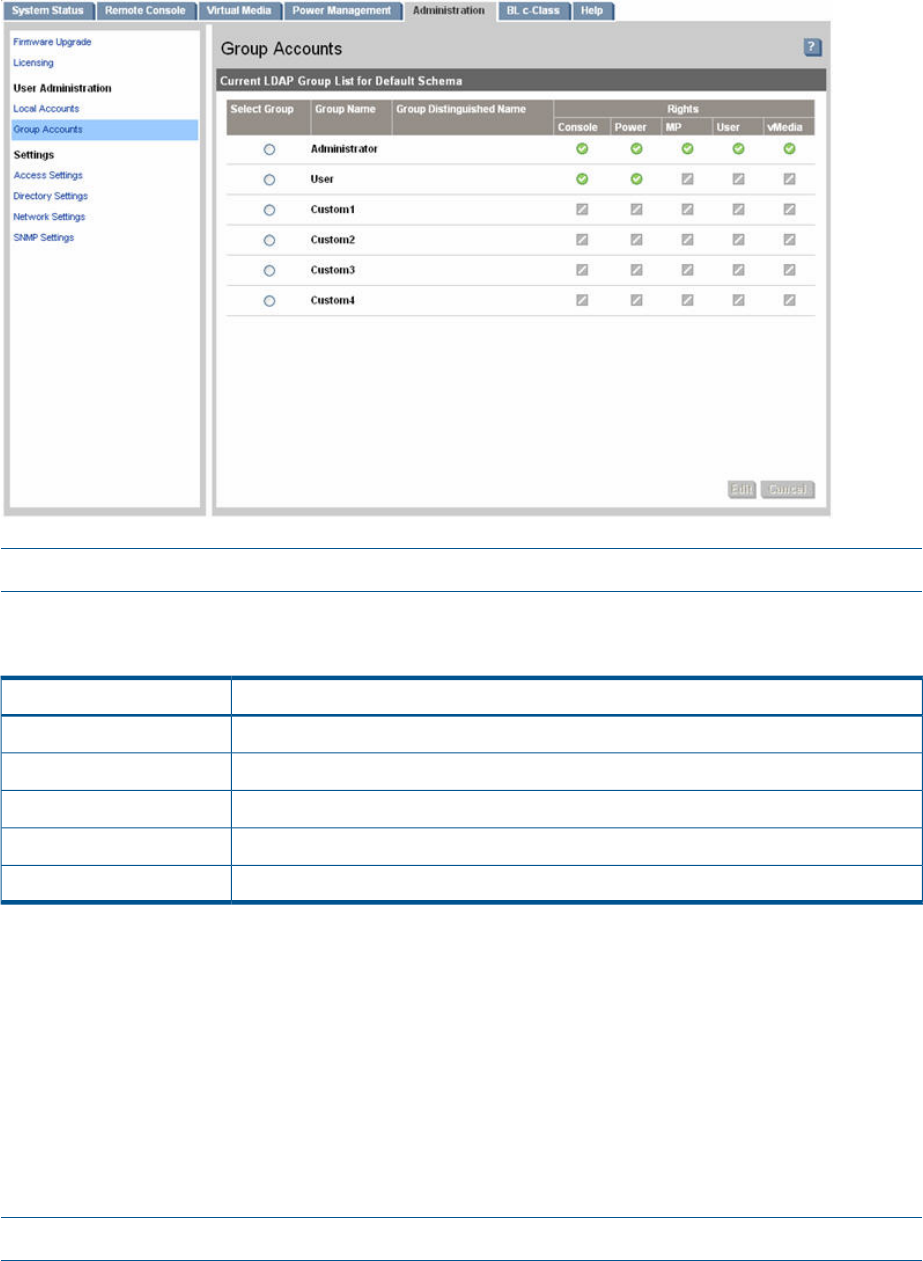

Figure 36 Group Accounts Page
NOTE: The BL c-Class tab is available only on HP Integrity server blades.
Table 45 lists the fields, buttons, and descriptions.
Table 45 Group Accounts Page Description
DescriptionFields and Buttons
Click Administrator and click Edit to open the Group Settings page and enter information.Administrator
Click User and click Edit to open the Group Settings page and enter information.User
Click Custom 1,2,3,4 and click Edit to open the Group Settings page and enter informationCustom (1,2,3,4)
Opens the Group Settings page.Edit
Cancels the action.Cancel
Access Settings
The Access Settings tab enables you to access the following pages:
• LAN
• Serial
• Login Options
LAN
The LAN page (Figure 37) enables you to modify LAN settings. You must have iLO configuration
access right to use this feature.
NOTE: Depending on your server, this page might look slightly different.
Web GUI 131
