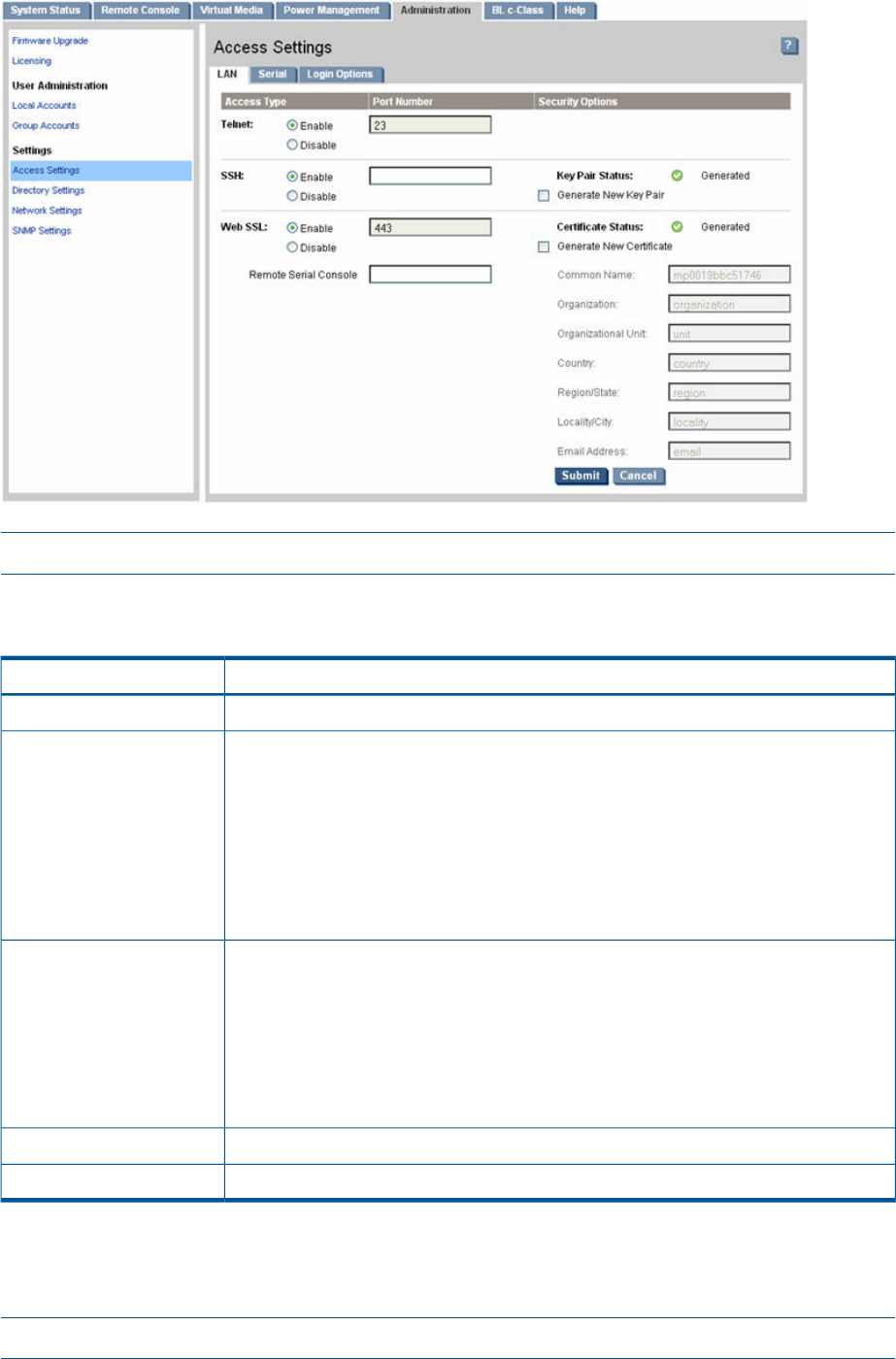

Figure 37 LAN Page
NOTE: The BL c-Class tab is available only on HP Integrity server blades.
Table 46 lists the fields, buttons, and descriptions.
Table 46 LAN Page Description
DescriptionFields and Buttons
You can enable or disable Telnet access to iLO 2 using the enable or disable option.Telnet
You can enable or disable SSH access to the iLO 2 using the enable or disable option.SSH
An industry-standard client-server connectivity protocol that provides a secure remote
connection. The iLO 2 supports:
• SSH2 implementation
• Authentication algorithms RSA and DSA
• Encryption algorithms 3DES-CBC and AES128-CBD
• Integrity algorithms HMAC-SHA1 and MD5
You can enable or disable the web SSL access to iLO 2 using the enable or disable
option. In order to make an SSL connection, you need to generate a certificate. The
certificate status indicates if a certificate has been generated previously.
Web SSL
To generate a new certificate, fill in the fields shown and check Generate New Certificate.
The system alerts you when the certificate is about to expire or if it has already expired.
You will need to generate a new certificate before you can continue.
You must reset the iLO MP after you generate a new certificate.
Submits the information.Submit
Cancels the action.Cancel
Serial Page
The Serial page (Figure 38) enables you to set the serial port parameters. You must have iLO
configuration access right to use this feature.
NOTE: Depending on your server, this page might look slightly different.
