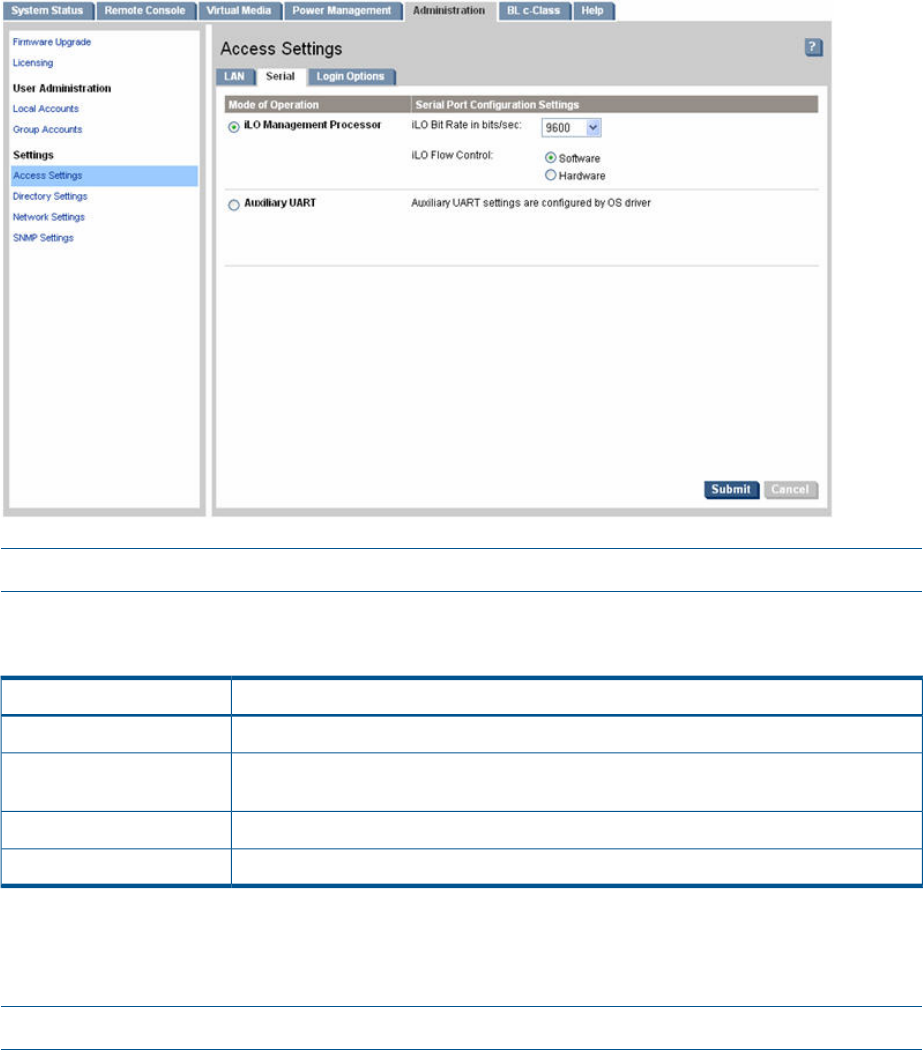

Figure 38 Serial Page
NOTE: The BL c-Class tab is available only on HP Integrity server blades.
Table 47 lists the fields, buttons, and descriptions.
Table 47 Serial Page Description
DescriptionFields and Buttons
This option enables you to set the baud rate. Input and output data rates are the same.Bit Rate in Bits per Second
Flow control can be through hardware or software. Hardware uses RTS/CTS; software
uses Xon or Xoff.
Flow Control
Submits the information.Submit
Cancels the action.Cancel
Login Options Page
The Login Options page (Figure 39) enables you to modify the security options of iLO 2. You must
have iLO configuration access right to use this feature.
NOTE: Depending on your server, this page might look slightly different.
Web GUI 133
