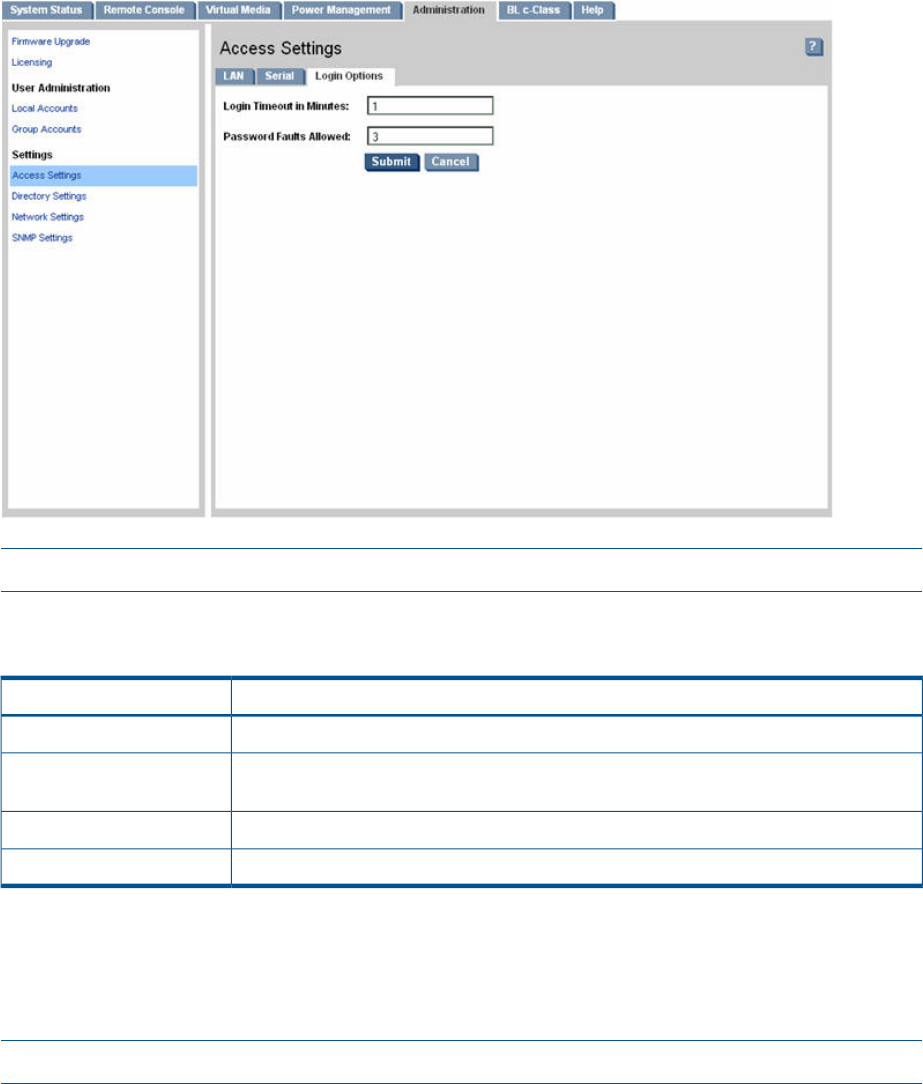

Figure 39 Login Options Page
NOTE: The BL c-Class tab is available only on HP Integrity server blades.
Table 48 lists the fields, buttons, and descriptions.
Table 48 Login Options Page Description
DescriptionFields and Buttons
The timeout value in minutes is effective on all ports, including local ports.Login Timeout in Minutes
This sets a limit on the number of password faults allowed when logging in to iLO 2. The
default number of password faults allowed is three.
Password Faults Allowed
Submits the information.Submit
Cancels the action.Cancel
Current LDAP Parameters
The Current LDAP Parameters page (Figure 40) enables you to edit LDAP parameters. You must
have iLO configuration access right to use this feature.
The LDAP feature is only available if you have the iLO 2 Advanced Pack license.
NOTE: Depending on your server, this page might look slightly different.
134 Using iLO 2
