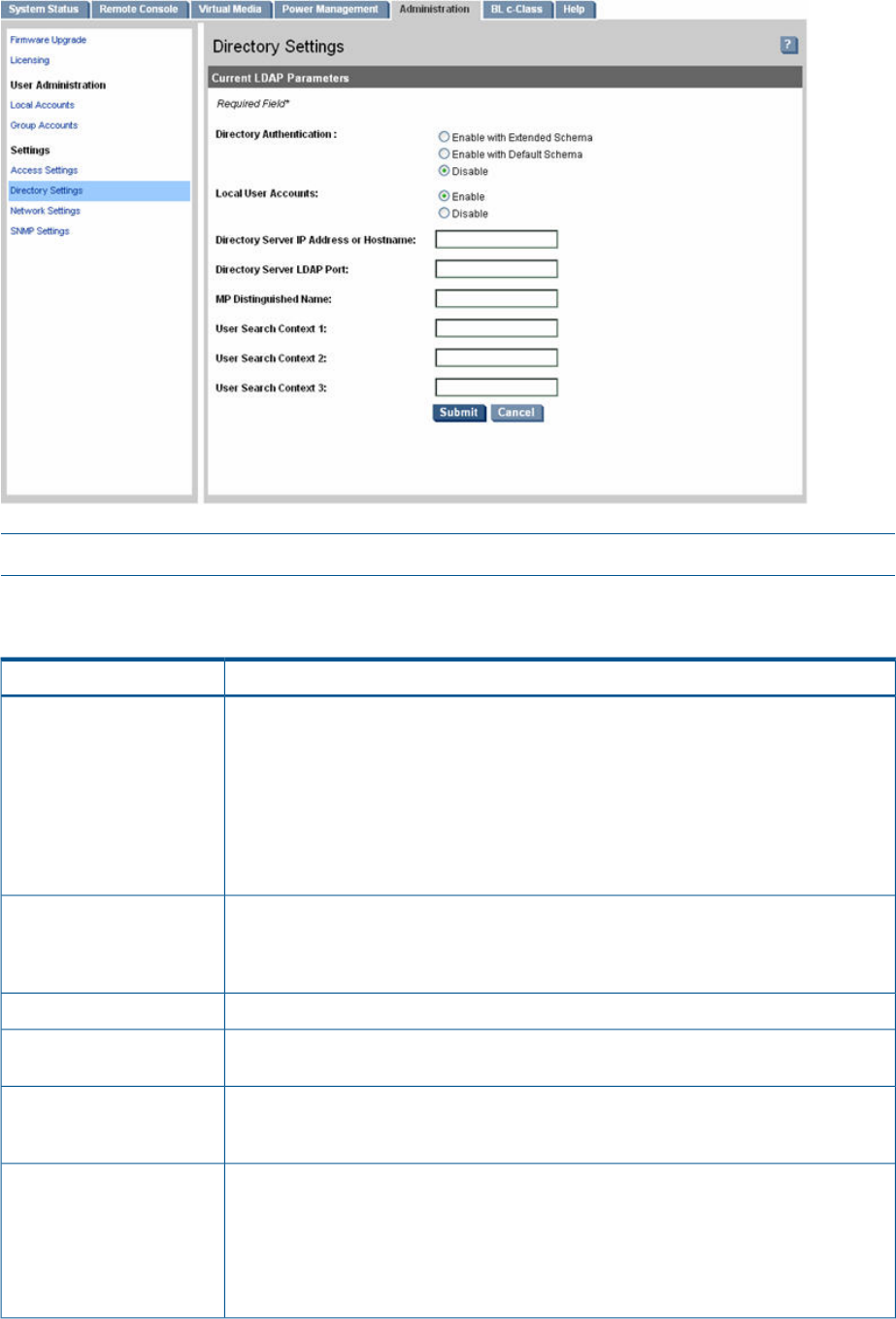

Figure 40 Current LDAP Parameters Page
NOTE: The BL c-Class tab is available only on HP Integrity server blades.
Table 49 lists the fields and descriptions.
Table 49 Current LDAP Parameters Page Description
DescriptionField
Choosing enable or disable, activates or deactivates directory support on iLO 2:Directory Authentication
• Enable with Extended Schema: selects directory authentication and authorization
using directory objects created with HP schema. Select this option if the directory
server has been extended with the HP schema.
• Enable with Default Schema: selects directory authentication and authorization using
user accounts in the directory which has not been extended with the HP schema. User
accounts and group memberships are used to authenticate and authorize users. Data
in the Group Administration page must be configured after this option is selected.
Includes or excludes access to local iLO 2 user accounts. Locally-stored user accounts
can be active while LDAP directory support is enabled. If local user accounts are enabled,
Local User Accounts
you may log in to the iLO 2 using locally-stored user credentials. If they are disabled,
access is limited to valid directory credentials only.
IP address of the directory server.Directory Server IP Address
Port number for the secure LDAP service on the server. The default value for this port is
636.
Directory Server LDAP Port
Distinguished Name of iLO 2, specifies where this iLO 2 instance is listed in the directory
tree.
Example: cn=MP Server,ou=Management Devices,o=hp
Distinguished Name
User name contexts are used to locate an object in the tree structure of the directory
server and applied to the login name entered to access iLO 2.
NOTE: For instances when user authentication uses the LDAP directory server that is
configured for Microsoft Active Directory, a user can log in using the username format
user@domain.hp.com. Currently, this user credential format is only supported on
Internet Explorer.
User Search Contexts (1,2,3)
Web GUI 135
