Table 51 DNS Page Description
DescriptionFields and Buttons
Use the DHCP server-supplied domain name.Use DHCP supplied domain
name
This represents the factory-default DNS name of the subsystem, for example, “hp.com”
in “ilo.hp.com”. You can enter a new DNS name.
Domain name
Use the DHCP server-supplied DNS server list.Use DHCP supplied DNS
servers
Register its name with a DDNS server.Register with Dynamic DNS
Submits the DNS information.Submit
Cancels the action.Cancel
SNMP Settings
The SNMP Settings page (Figure 43) enables you edit SNMP feature settings.
You must have iLO configuration access right to use this feature.
NOTE: Depending on your server, this page might look slightly different.

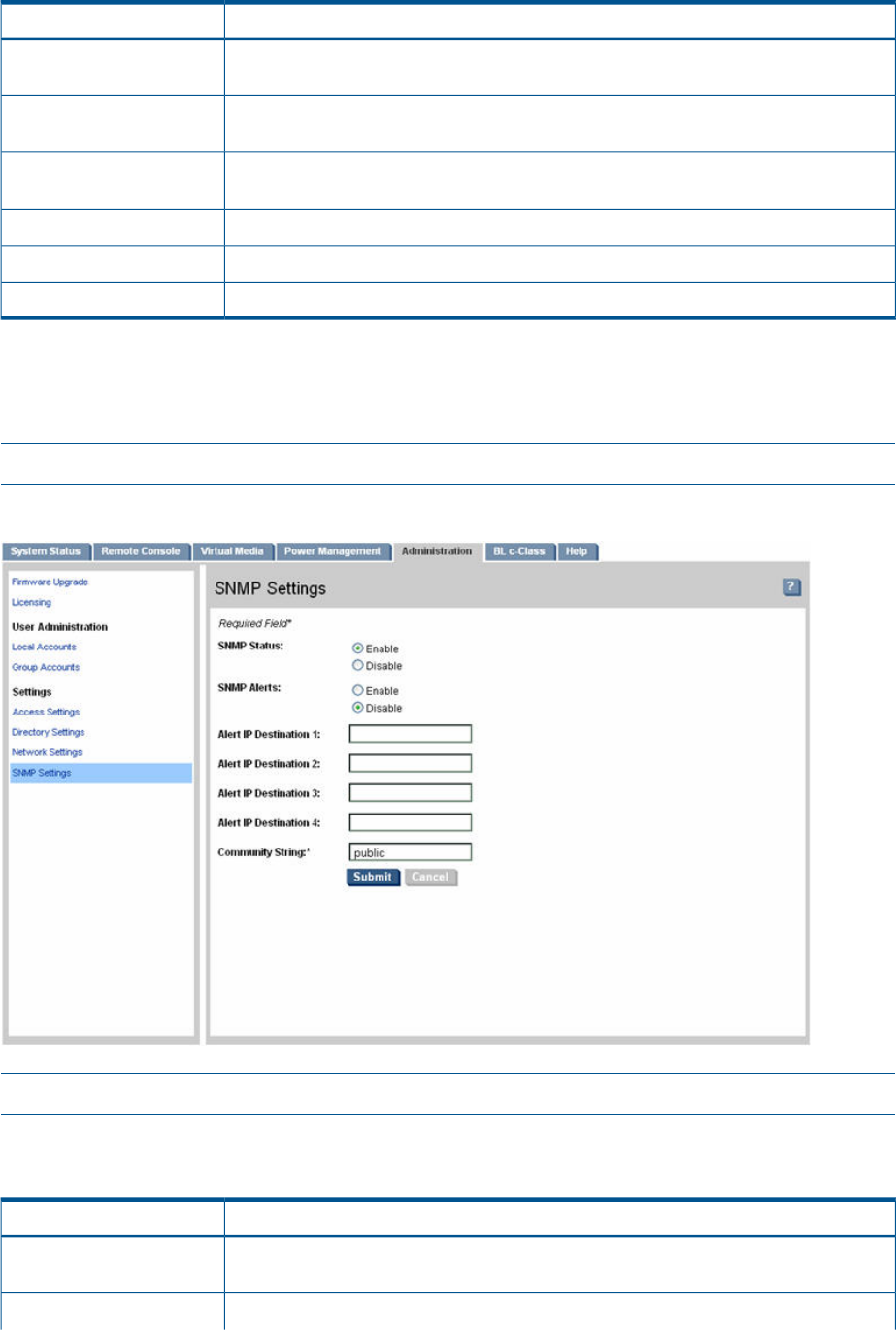

Figure 43 SNMP Settings Page
NOTE: The BL c-Class tab is available only on HP Integrity server blades.
Table 52 lists the fields and descriptions.
Table 52 SNMP Settings Page Description
DescriptionField
Choosing Enable or Disable, activates or deactivates the SNMP feature support on this
iLO 2.
SNMP
Enter E to enable or D to disable all SNMP alerts.SNMP Alerts
138 Using iLO 2
