Table 52 SNMP Settings Page Description (continued)
DescriptionField
Enter 1, 2, 3, 4 to configure a destination IP address for SNMP alerts. The default
is blank (unused).
Configure the community string to secure the access to the management information base
(MIB) objects. The default is public.
Community String
Submits the information.Submit
Cancels the action.Cancel
NOTE: If SNMP was disabled earlier and then enabled, you will receive the following message:
Reset MP (XD command option ‘R’) for configuration to take effect.
Click OK and reset iLO 2.
BL c-Class
The Onboard Administrator page (Figure 44) is used to facilitate the cabling and initial installation
of servers blade. It also provides a quick view of the enclosure status. You must have configuration
access right to turn the enclosure locator UID LED on or off.
NOTE: Depending on your server, this page might look slightly different.

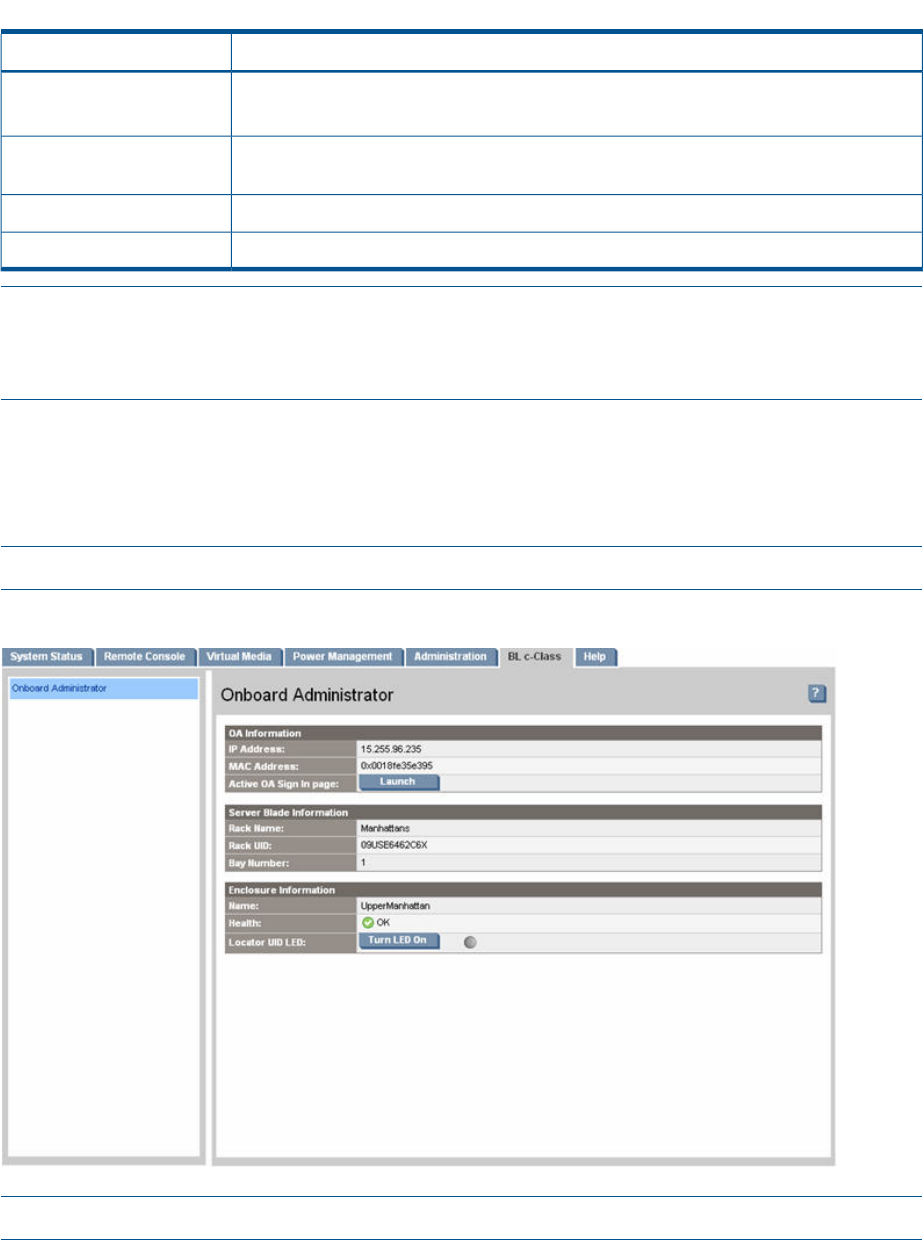

Figure 44 Onboard Administrator
NOTE: The BL c-Class tab is available only on HP Integrity server blades.
Table 53 lists the fields and descriptions.
Web GUI 139
