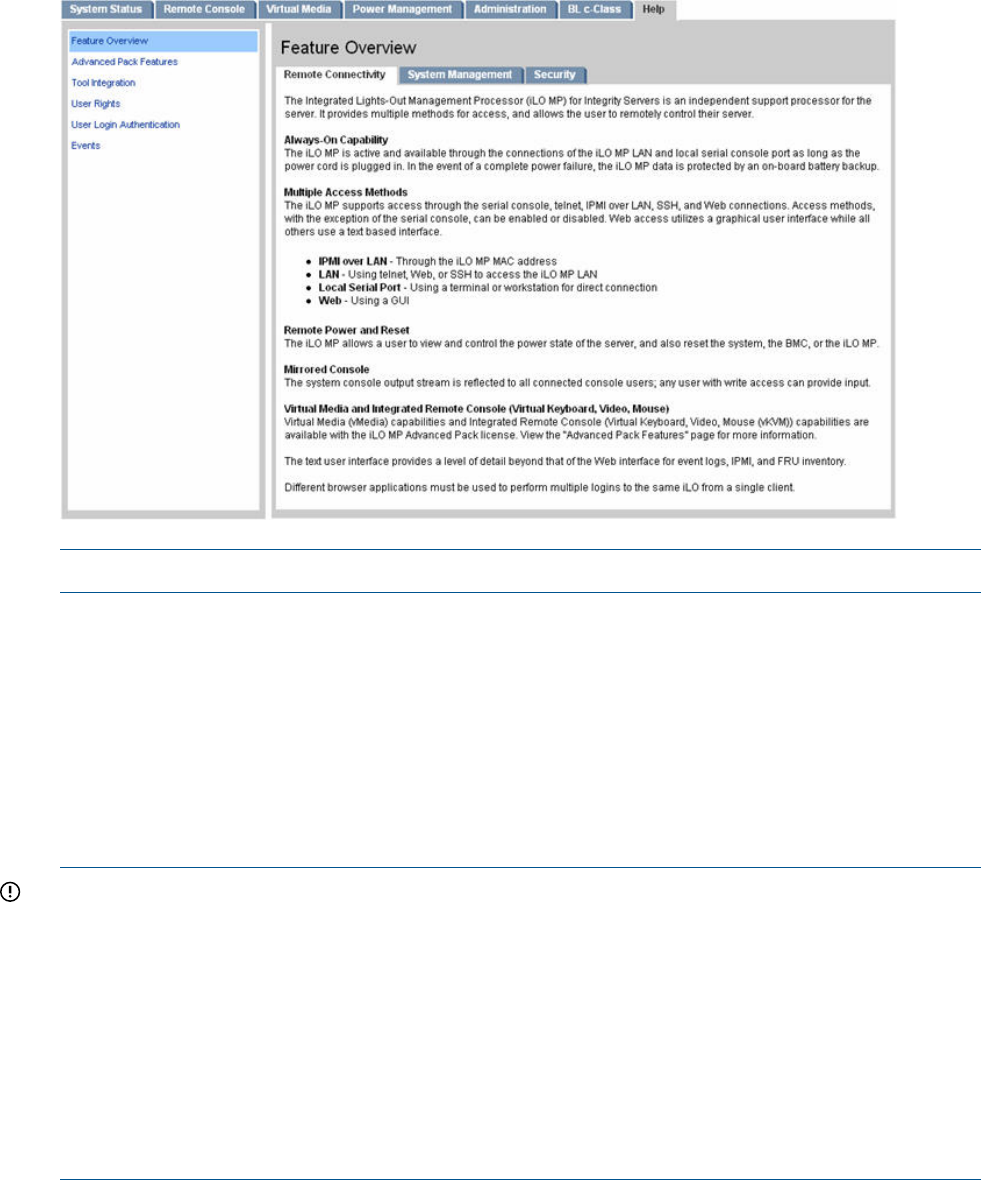

Figure 45 Help Page
NOTE: The BL c-Class tab is available only on HP Integrity server blades.
You can also click the ? at the top right corner of each page to display help about the page you
are on.
Select any of the topics listed in the left navigation bar to access that particular help screen.
SMASH Server Management Command Line Protocol
The Systems Management Architecture for Server Hardware (SMASH) initiative is an effort within
the Distributed Management Task Force (DMTF) to standardize commands for servers. The Server
Management Command Line Protocol (SM CLP) specifies common command line syntax and
message protocol semantics for server management.
IMPORTANT:
• The current DMTF CLI implementation is a prestandard release and is subject to change.
• SMASH SM CLP is not the primary text user interface (TUI) or the primary scripting interface
for iLO 2.
• The HP proprietary TUI is the primary text interface of iLO 2.
• The entire text user interface of iLO 2, available on Telnet and SSH, supports all MP
functionality.
• SMASH CLP does not support all iLO 2 features, and is a prototype implementation only.
• SMASH CLP is only available for entry class servers.
SM CLP Features and Functionality Overview
SM CLP includes the following features:
• Provides a user-friendly method to view and manage server information with commands in
formats that facilitate scripting.
• Offered in addition to the iLO 2 existing CLI.
SMASH Server Management Command Line Protocol 141
