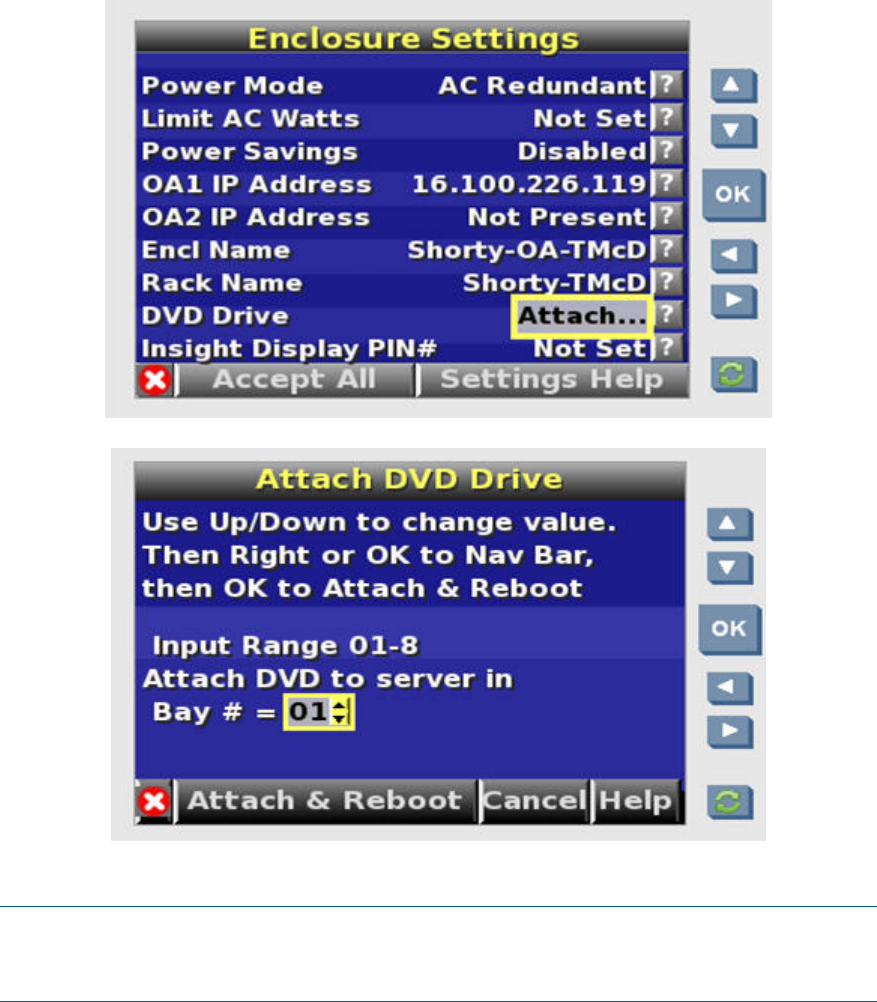

1. Using the LCD display on the OA enclosure, navigate to the DVD Drive - Attach...
option.
2. Using the Telnet/SSH connection to the OA.
NOTE: While in the OA, you will not be entering the SM CLP vMedia commands directly
in MP. Instead, you will issue the commands from the Telnet/SSH connection of the OA to
connect or disconnect vMedia.
• Enter the following commands to either connect or disconnect vMedia:
set server dvd connect <slot #> (or all to connect for all blades)
set server dvd disconnect <slot #> (or all to disconnect for all blades)
164 Using iLO 2
