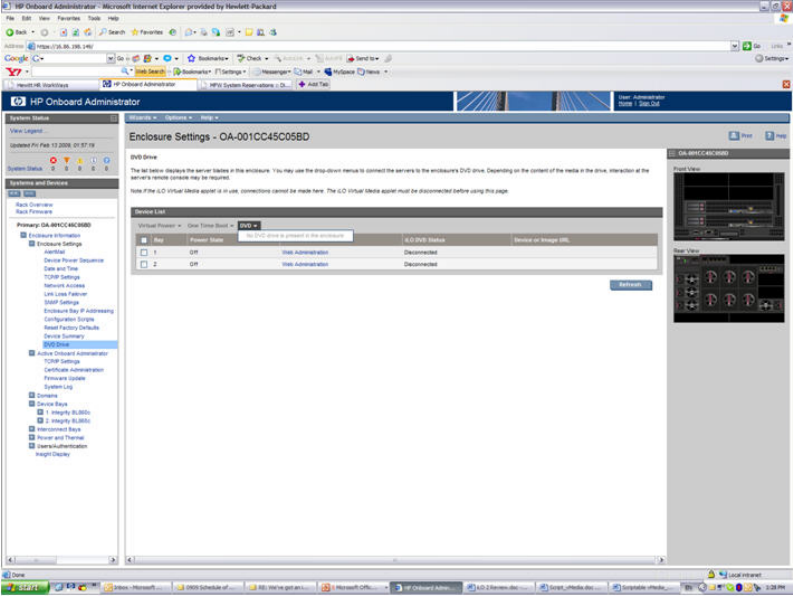

3. Using the OA GUI, navigate to Enclosure Information/Enclosure Settings/DVD Drive.
The OA web GUI interface provides an easy-to-navigate graphical interface. Select a specific
action for vMedia, such as inserting a disk, connecting, and so on.
Known Issues
• Only DVD/CD is supported at this time.
• Floppy/USB Key is currently not supported.
• Only one device is supported at a time with scriptable vMedia (either DVD/CD or Floppy/Key).
• Scriptable vMedia cannot connect while another vMedia Applet is connected and vice versa.
• Apache server cannot support large ISO images (greater than 2 GB).
• Scriptable vMedia does not currently have fully supported DNS. As a result, it does not support
using the hostname in the CLI. Instead you must specify the IP address of the Apache server
while specifying the image path in the command line.
• The vMedia feature is supported using the USB 1.1 protocol (since MP FW uses Philips 1181
USB device). As a result, USB 2.0 is not currently supported.
• DVD appears as the large CD.
• Currently there is no support on fully compliant DVD.
Typical Scriptable vMedia Usage
Using the scriptable vMedia feature, you can perform the following:
Deploying Operating Systems
• Installing (RHEL and SLES) Linux using ISO images
• Installing (RHEL and SLES) Linux using a set of physical CDs
• Installing Windows Server 2003 using Re-install Media using CD
• Installing Windows Server 2003 using Re-install Media using ISO image
