Required Schema Software
The iLO 2 requires specific software to extend the schema and provide snap-ins to manage the
iLO 2 network. An HP Smart Component that contains the schema installer and the management
snap-in installer is available for download from the HP website at http://www.hp.com/go/
integrityiLO.
The two components you need for Integrity iLO 2 directory integration are the Schema Extender
Utility and the Snap-in Installer.
Schema Installer
One or more .xmlfiles are bundled with the schema installer. These files contain the schema that
is added to the directory. Typically, one of these files contains core schema that is common to all
the supported directory services. Additional files contain only product-specific schema. The schema
installer requires the use of the .NET Framework.
The schema installer includes three important screens:
• Schema Preview
• Setup
• Results
Schema Preview Screen

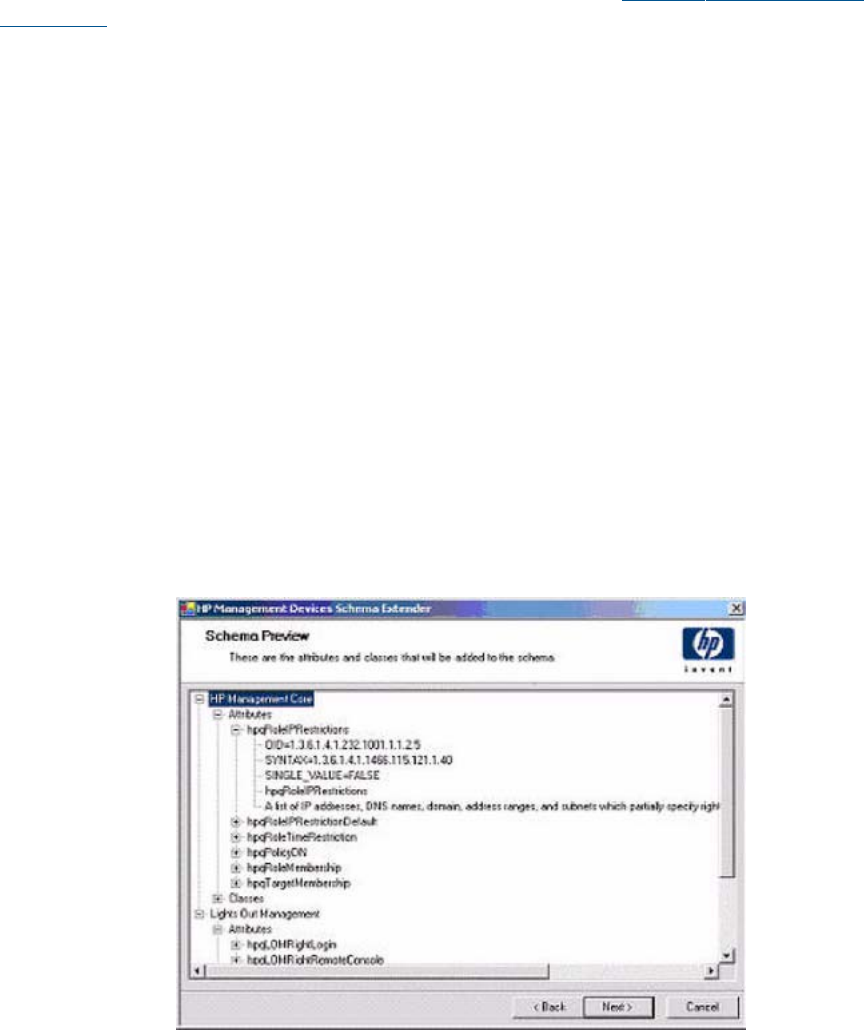

The Schema Preview screen (Figure 46) enables you to view proposed extensions to the schema.
This application reads the selected schema files, parses the XML, and displays the schema on the
screen in a tree view listing all of the details of the attributes and classes that are installed.
Figure 46 Schema Preview Screen
Setup Screen
Use the Setup screen (Figure 47) to enter information before extending the schema.
