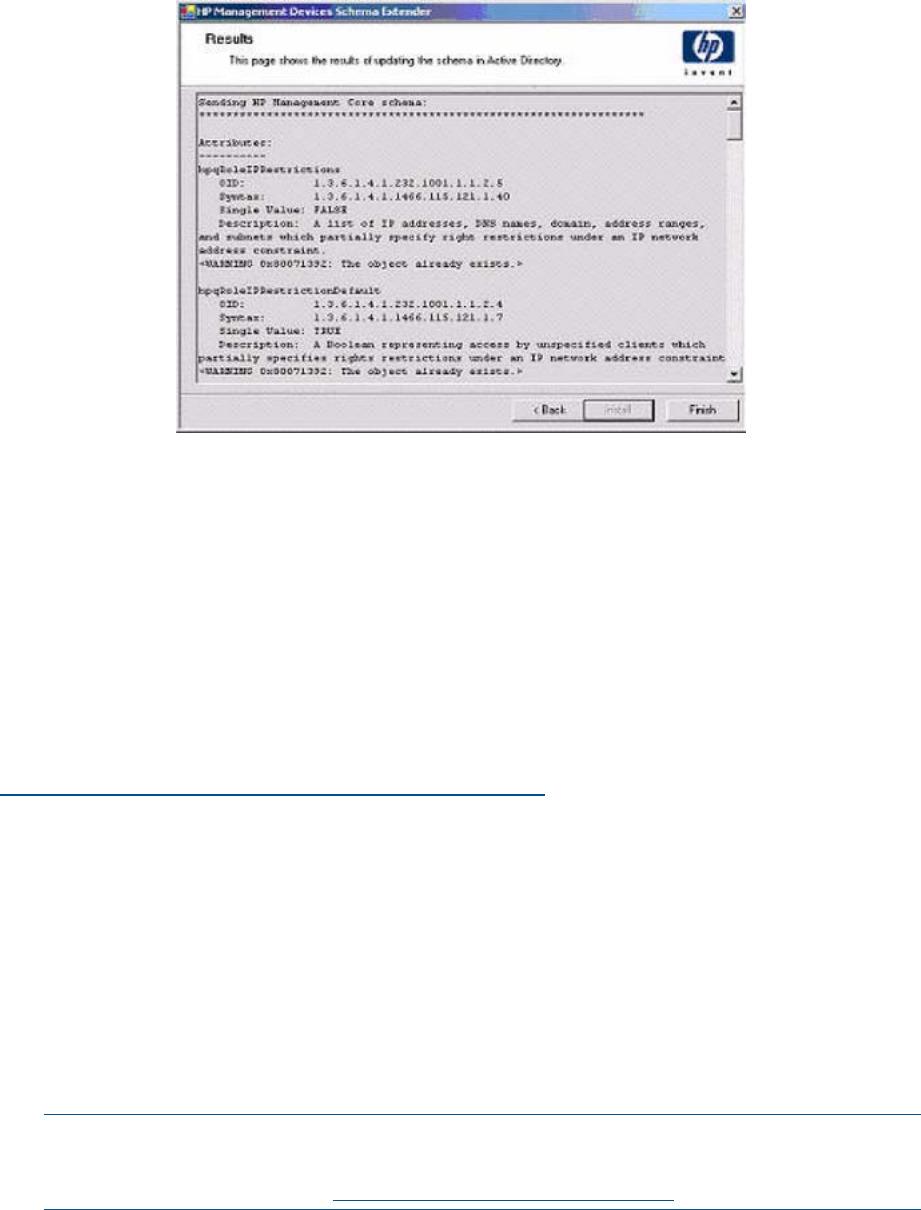

Figure 48 Schema Results Screen
Management Snap-In Installer
The management snap-in installer installs the snap-ins required to manage iLO 2 objects in a
Microsoft Active Directory Users and Computers directory or in a Novell ConsoleOne directory.
To create an iLO 2 directory using iLO 2 snap-ins, perform the following tasks:
1. Create and manage iLO 2 objects and role objects.
2. Make the associations between iLO 2 objects and role objects.
Directory Services for Active Directory
HP provides a utility to automate much of the directory setup process. You can download the HP
Directories Support for iLO 2 on the HP website at:
http://h20000.www2.hp.com/bizsupport/TechSupport/
The following sections provide installation prerequisites, preparation, and a working example of
directory services for Active Directory.
Active Directory Installation Prerequisites
The following are prerequisites for installing Active Directory:
• The Active Directory must have a digital certificate installed to enable iLO 2 to connect securely
over the network.
• The Active Directory must have the schema extended to describe iLO 2 object classes and
properties.
• The MP firmware must be Version F.01.57 or later.
NOTE: Before performing certain iLO 2 functions, verify that you have the supported firmware
version required to carry out the task. To make sure you have the latest supported firmware
version, see the HP website at http://www.hp.com/go/bizsupport.
• The iLO 2 advanced features must be licensed.
Directory services for iLO 2 uses LDAP over SSL to communicate with the directory servers. Before
installing snap-ins and schema for Active Directory, read and have available the following
documentation:
174 Installing and Configuring Directory Services
