HP Integrity iLO 2 Operations Guide

c. In the Name field of the dialog box, enter an appropriate name In this example, the DNS
host name of the iLO 2 device, lpmp, is used as the name of the iLO 2 object, and the
surname is iLO 2.
d. Enter and confirm a password in the Device LDAP Password and Confirm fields (this is
optional).
e. Click OK.
3. Use the HP provided Active Directory Users and Computers snap-ins to create HP role objects
in the roles organizational unit.
4. Right-click the Roles organizational unit, select New, and select Object. The Create New HP
Management Object dialog box appears.
a. In the Type field, select Role.
b. In the Name field, enter an appropriate name. In this example, the role contains users
trusted for remote server administration and is named remoteAdmins.
c. Click OK
d. Repeat the process, creating a role for remote server monitors named remoteMonitors.
5. Use the Active Directory Users and Computers snap-ins provided by HP to assign the roles
rights, and associate the roles with users and devices.
a. In the Roles organizational unit in the mpiso.com domain, right-click the remoteAdmins
role , and select Properties.
b. Select the HP Devices tab and click Add.
c. From the Select Users dialog box (Figure 51), select the iLO 2 object created in step 2:
(lpmp in folder mpiso.com/MPs). Click OK.

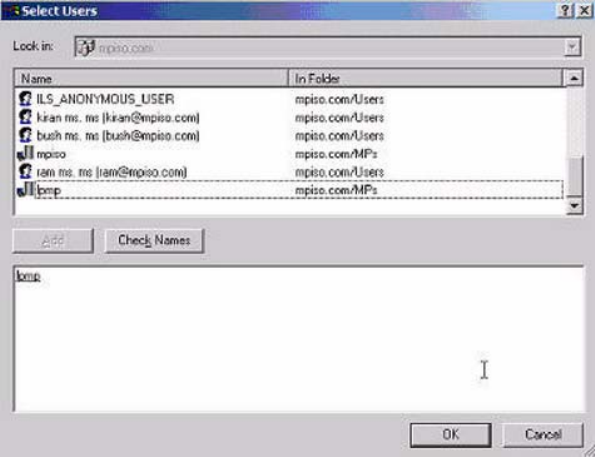

Figure 51 Select Users Dialog Box
d. To save the list, click Apply.
e. To add users to the role, click the Members tab and use the Add button and the Select
Users dialog box. Devices and users are now associated.
6. To set the rights for the role, use the Lights-Out Management tab (Figure 52). All users and
groups within a role have rights assigned to the role on all of the iLO 2 devices managed by
the role. In this example, the users in the remoteAdmins role are given full access to the iLO
2 functionality. Select the appropriate rights and click Apply.
178 Installing and Configuring Directory Services
