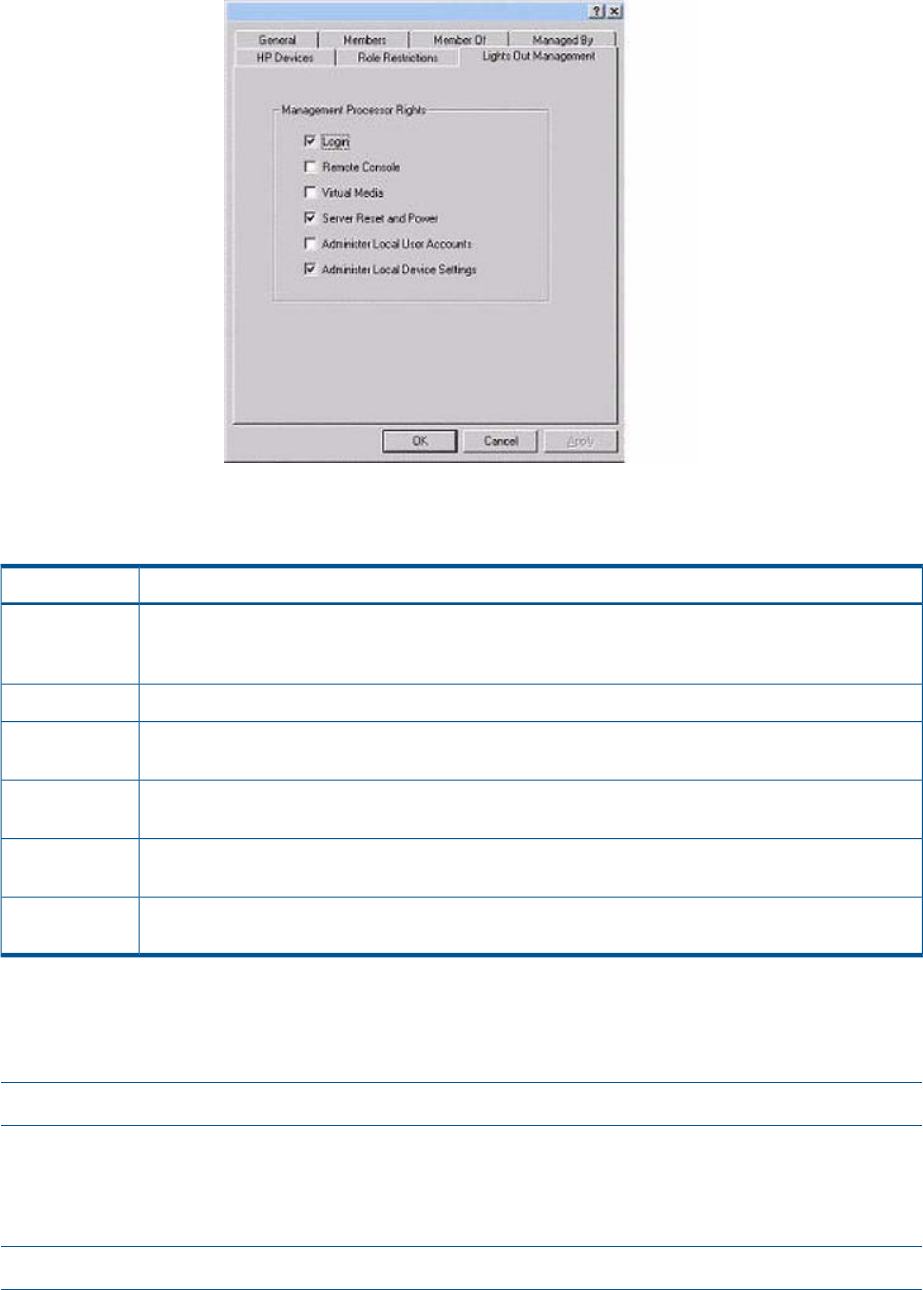

Figure 58 Lights-Out Management Tab
Table 78 lists the available Lights-Out Management rights.
Table 78 Lights-Out Management Rights
DescriptionMP Rights
This option controls whether users can log in to the associated devices and execute Status or
Read-only commands (view event logs and console logs, check system status, power status, and
so on) but not execute any commands that would alter the state of iLO 2 or the system.
Login
This option enables users to access the system console (the host OS).Remote Console
This option enables users to connect devices through the network such as CD, DVD, and network
drives as virtual devices.
Virtual Media
This option enables users to execute iLO 2 power operations to remotely power on, power off, or
reset the host platform, as well as configure the system's power restore policy.
Server Reset
and Power
This option enables users to administer local iLO 2 user accounts.Administer Local
User Accounts
This option enables users to configure all iLO 2 settings, as well as reboot LO 2.Administer Local
Device Settings
Directory Services for eDirectory
The following sections provide installation prerequisites, preparation, and a working example of
directory services for eDirectory.
NOTE: Schema-Free LDAP is not supported with eDirectory.
Installing and Initializing Snap-In for eDirectory
For instructions on using the snap-in installation application, see “Installing and Initializing Snap-Ins
for Active Directory” (page 176).
NOTE: After you install snap-ins, restart ConsoleOne and MMC to show the new entries.
184 Installing and Configuring Directory Services
