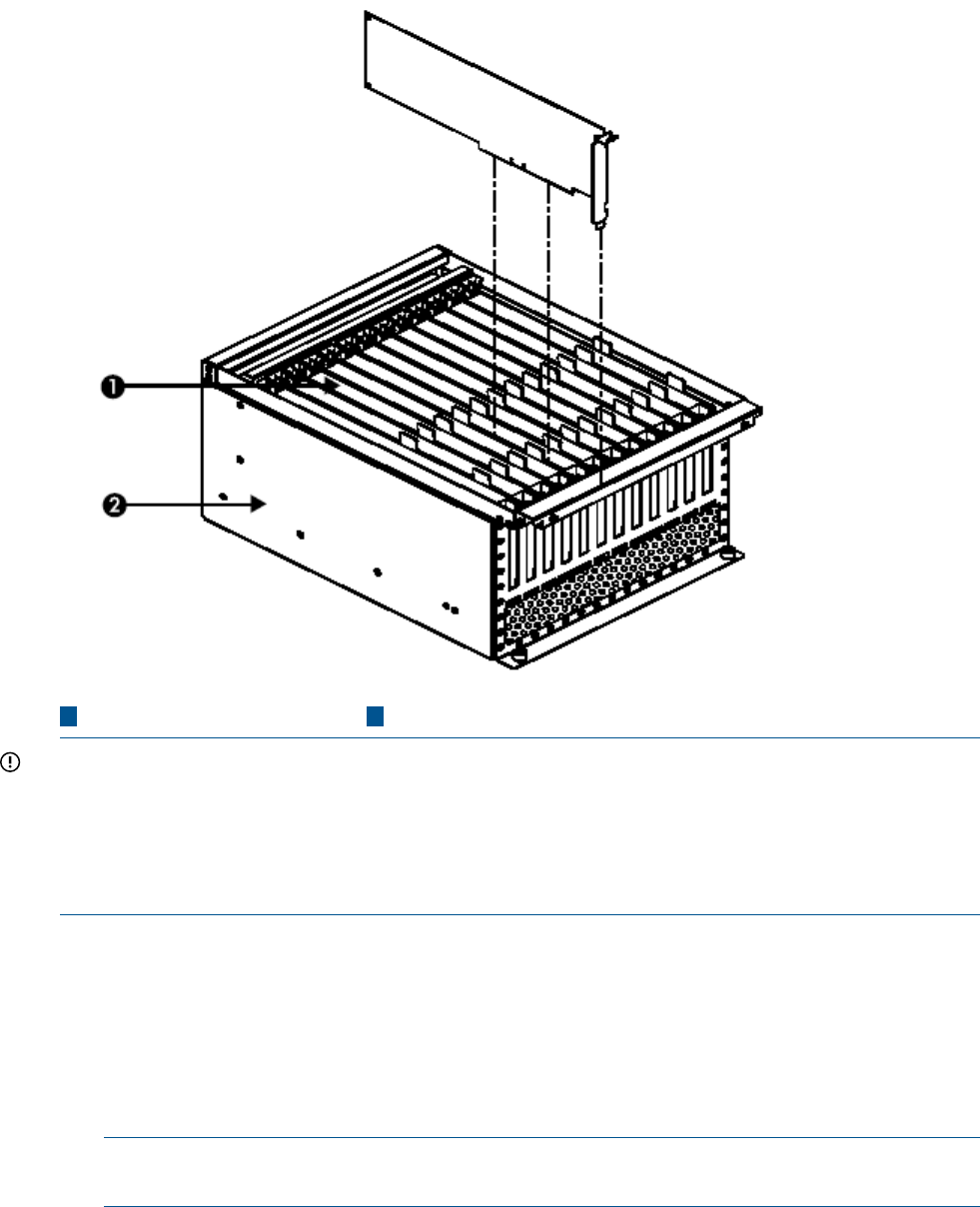

Figure 10 PCI-X or PCI-X/PCIe Card Cage (Common to all supported servers)
21
PCI-X or PCIe BackplanePCI-X/PCIe Cards
IMPORTANT: Cabling requirements:
• You must connect the LAN port on the Lights-Out Advanced KVM card to the same network
as the MP LAN port on the server.
• You need a network cable to your regular core I/O MP port - one per complex.
• You need one network cable to each Lights-Out Advanced KVM card.
To install the Lights-Out Advanced KVM card, perform the following steps:
1. Shut down the nPartition and power-off the appropriate PCI power domain.
2. Locate an empty mode-1 PCI-X slot where the card will be installed.
3. Position the card over the empty slot, ensuring that the edge connector keyways match on the
PCI-X or PCI-X/PCIe backplane connector.
4. Using slow, firm pressure, seat the card in the slot.
5. Connect the management LAN cable to the LAN port on the card.
NOTE: If you do not wish to use the on-card KVM features, ignore steps 6 and 7, and
proceed to step 8.
6. Connect the monitor cable to the VGA port on the card, and connect the mouse and keyboard
cables to the USB ports on the card.
7. Connect the monitor power cable, and then turn on the monitor.
54 Adding Advanced Features
