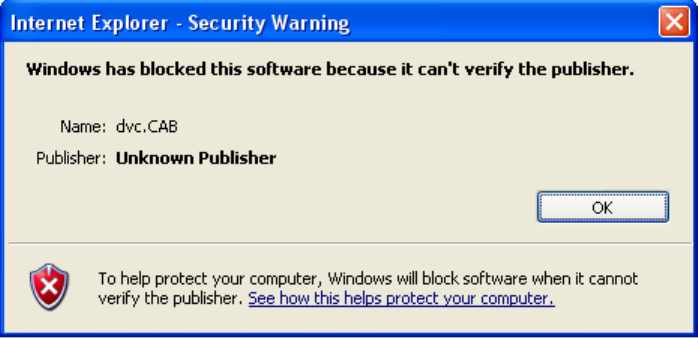

Figure 11 dvc.CAB Error
Follow these steps:
a. Close the IRC window.
b. Open a vMedia window for that npar (no need to connect).
c. Select Always trust content from this publisher in the Warning - Security
window after opening vMedia.
d. Re-open the IRC window.
9. When rebooting. you should see the output of the console on both the serial console and the
IRC. This will not appear if acpiconfig is in default mode. When it displays in graphic
mode, you only see it on the IRC.
Using Lights-Out Advanced KVM Features
To access the iLO 2 web GUI, browse to the main iLO 2. The following functionality is available:
• Server status
• Firmware versions
• System event log
• Remote power
• Remote reset for partitions
• MP and Lights-Out Advanced-KVMs
• MP user administration
• MP and Lights-Out Advanced-KVM network settings
The only user access to the Lights-Out Advanced KVM card is through the main iLO 2 web GUI.
• The Lights-Out Advanced KVM card is not “iLO on a card”; and it is not a RILOE.
• The web browser does not connect directly to the Lights-Out Advanced KVM card. The web
browser connects to the main iLO 2 for the whole chassis.
• The iLO 2 then communicates with the Lights-Out Advanced KVM card.
• The firmware does not allow direct communication with the Lights-Out Advanced KVM card.
In the main iLO 2 web GUI, there are a number of new tools that are unique to the Integrity
cell-based servers. Specifically, there are pull-down tabs that enable you to select individual partitions
for power (on/off/reset) management, vMedia, and IRC / vKVM. The last two, vMedia and IRC,
are enabled per partition with the Lights-Out Advanced KVM card. The pull-down tabs for vMedia
and IRC only show partitions that have Lights-Out Advanced KVM cards installed.
