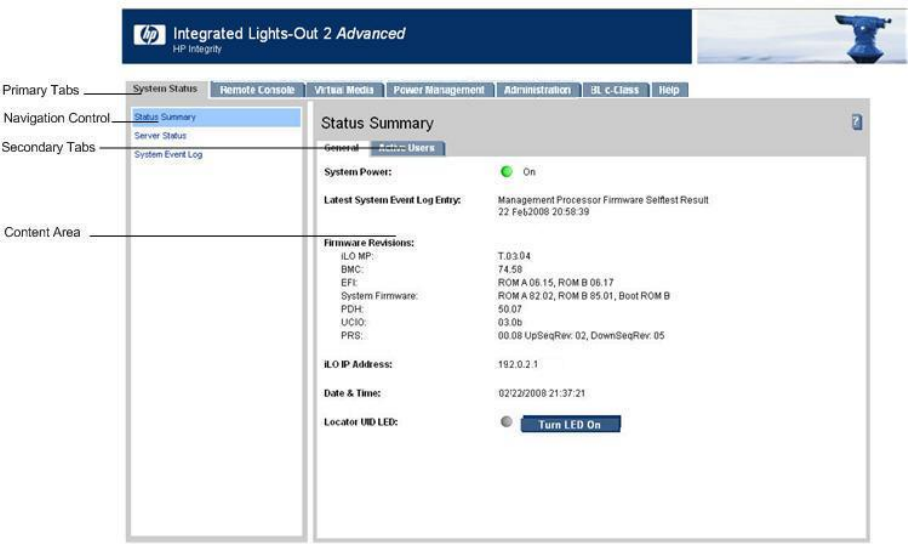

Figure 13 Status Summary Page
4. Select the web interface functions by clicking the Primary tabs at the top of the page. Each
function lists options in the Navigation Control on the left side of the page.
5. To display data in the content area; select an option and click Refresh to update the display.
6. Click the Remote Console tab. The remote console provides the following options to access
the console:
• A serial console that behaves similarly to the TUI
• The virtual KVM console
Accessing Online Help
The iLO 2 web interface has a robust help system. To launch iLO 2 help, click Help. Alternately,
click the ? at the top right corner of each page to display help about that page.
Accessing a Text Host Console Using the TUI
To access the host console using the text user interface (TUI):
1. Log in using your user account name and password at the login page.
2. To switch the console terminal from the MP Main Menu to mirrored/redirected console mode,
enter the CO command at the MP> login prompt. All mirrored data appears.
3. To return to the iLO 2 MP command interface, enter Ctrl-B or Esc (.
Help System
Integrity iLO 2 has a robust help system.
To access the Help menu from the TUI, enter HE at the MP> prompt. The following is the MP Help
Main Menu:
==== MP Help: Main Menu ===============================================
Integrated Lights-Out for HP Integrity and HP 9000 - Management Processor (MP) MP Help System
Enter a command at the help prompt:
OVerview : Launch the help overview
LIst : Show the list of MP Main Menu commands
