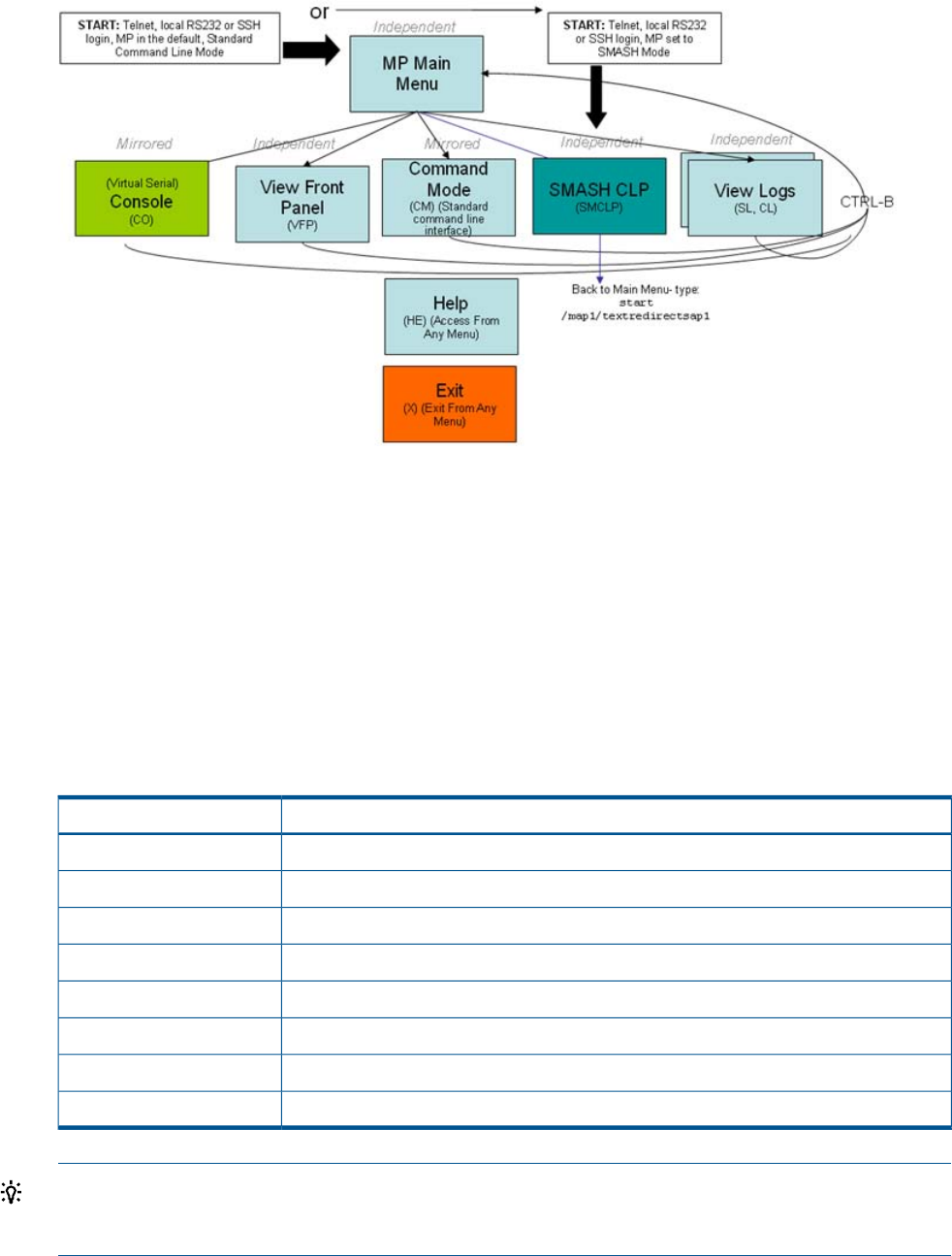

Figure 14 MP Command Interfaces
MP Main Menu
After logging in to the iLO 2 MP, the MP Main Menu appears. The MP Main Menu runs as a
private session. Other iLO 2 users do not see the actions you perform in the private session.
Integrity iLO 2 can support multiple sessions to perform independent tasks:
• Multiple windows logged into iLO 2 to monitor VFP or study event logs in one window while
administering the server from another window.
• Resetting a server from one window and monitoring the boot from another window while
interacting with the console from a third window.
Table 23 lists the MP Main Menu commands.
Table 23 MP Main Menu Commands
DescriptionCommand
Selects console modeCO
Displays the virtual front panelVFP
Enters command interface modeCM
Accesses the SMASH SM CLPSMCLP
Views the console logCL
Shows event logsSL
Displays help for the menu or commandHE
ExitsX
TIP: An effective method for using iLO 2 is to log in more than once with different views for each
session. For instance, one window logged in viewing the console, and another viewing the virtual
front panel.
MP Main Menu Commands
MP Main Menu command descriptions are listed as follows:
76 Using iLO 2
