Replacement Instructions for the Air Bleeder Valve HP Modular Cooling System

c.

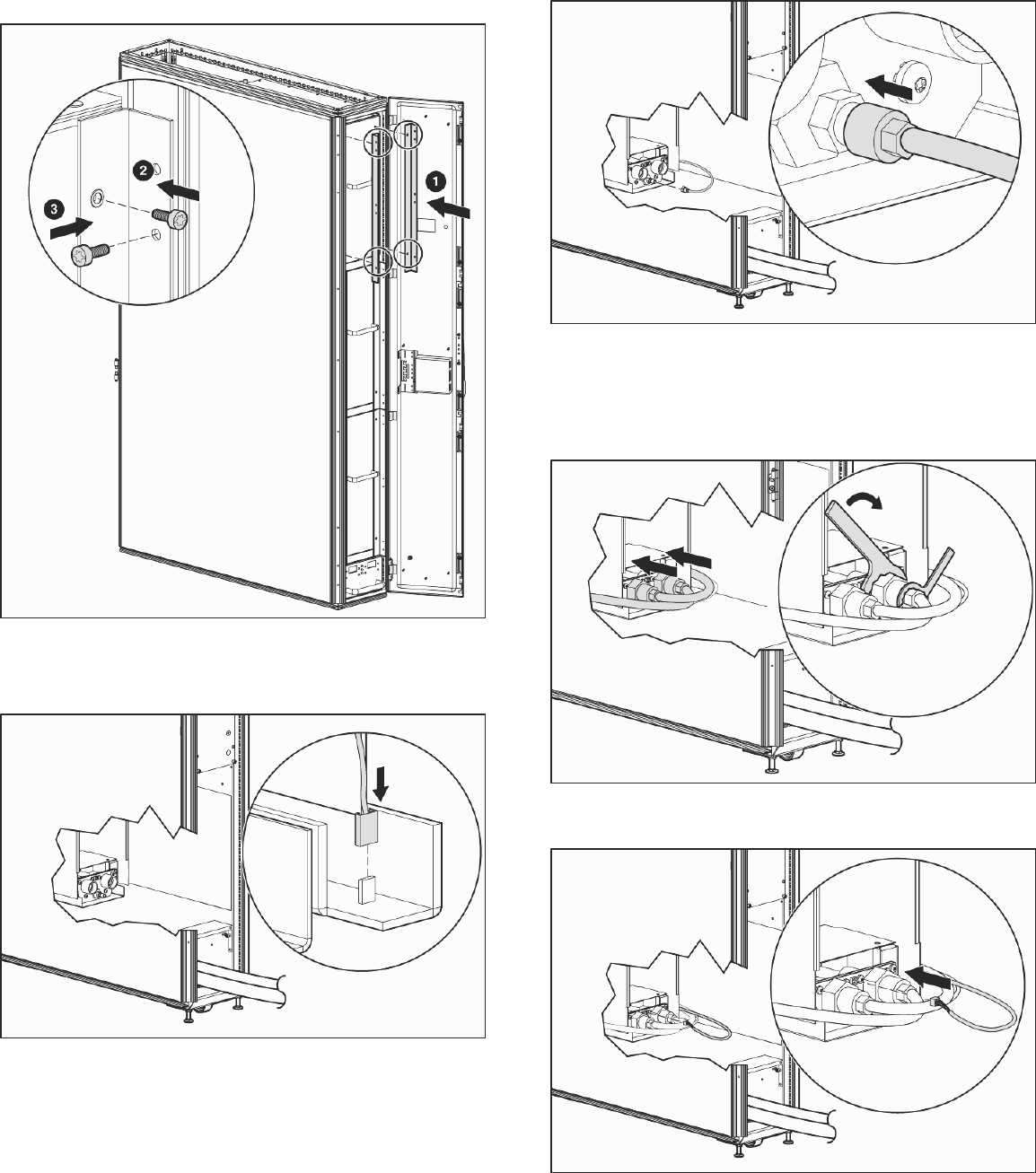

Using a T-25 Torx driver, secure the two shipping
brackets to the MCS frame by inserting and
tightening four Torx screws (3).
3. Open the rear MCS door.
4. Connect the green and yellow ground bonding wire to
the heat exchanger unit.
5. Connect the condensation hose to the heat
exchanger unit.
6. Using the counter hold wrench to hold the fitting in place
and the water hose fitting wrench to tighten the water
hose (both wrenches are included with your original
MCS unit), connect the In and Out water hoses to the
heat exchanger unit.
7. Connect the temperature sensor connector to the heat
exchanger unit.
