16

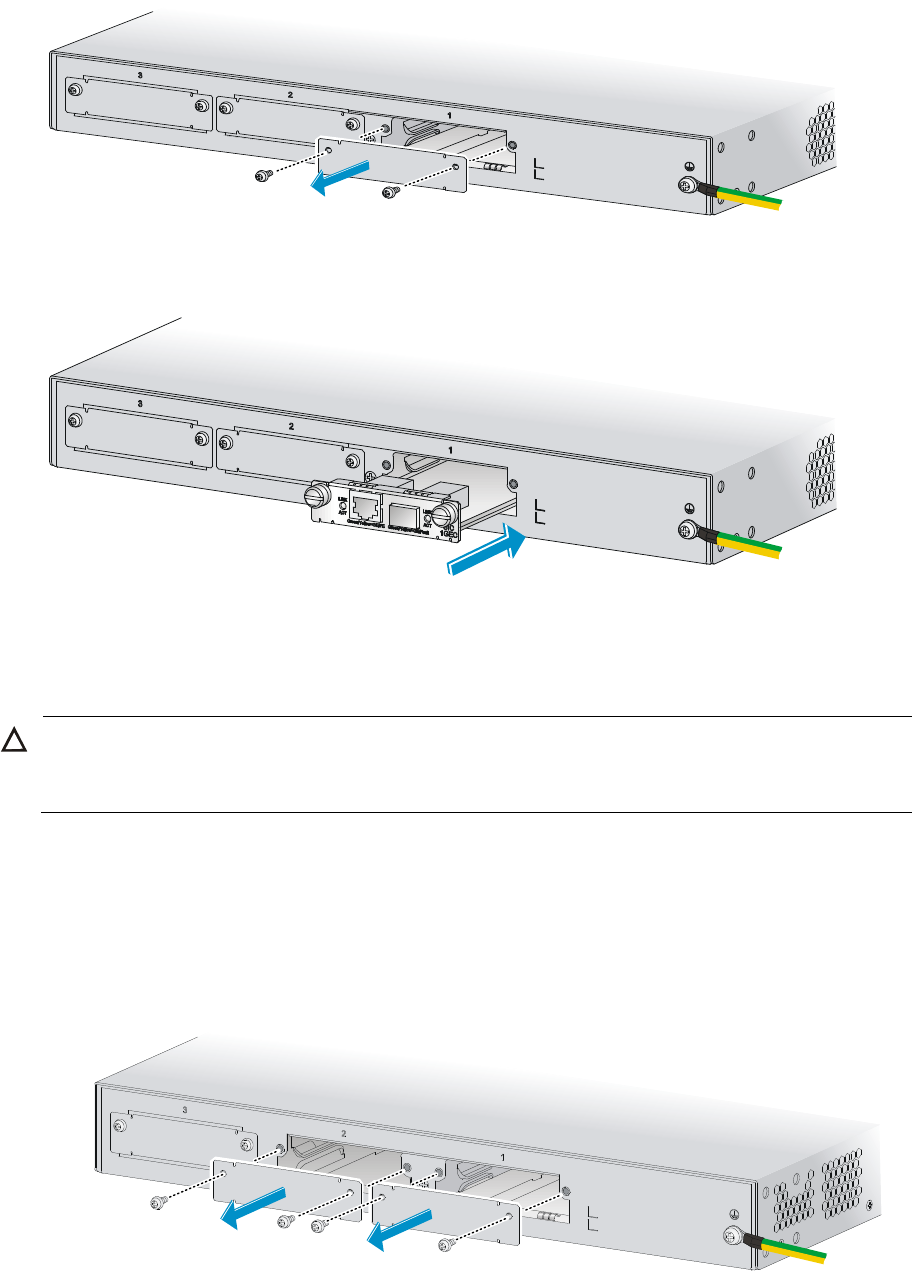

Figure 11 Removing the blank filler panel
Figure 12 Installing the SIC
Installing a DSIC
CAUTION:
DSIC interface modules are not hot swappable. Make sure the router is powered off before installing a
DSIC.
To install a DSIC:
1. Remove the screws on the filler panel on slot 1 and slot 2 of the router to remove the filler panel,
as shown in Figure 13.
2. Loo
sen the captive screws on the slot divider and pull out the slot divider, as shown in Figure 14.
Figure 13 Removing the filler panel
