21

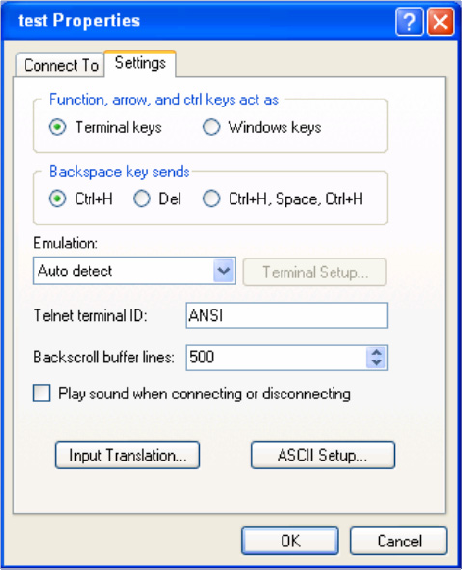

Figure 22 Setting terminal emulation in test Properties dialog box
Connecting an AC power cord
1. Make sure the router is correctly grounded, and the power switch on the router is in the OFF
position.
2. Connect one end of the AC power cord to the AC receptacle on the router, and the other end to
the AC power source.
3. Install the bail latch and push it leftward to secure the power cord.
