22

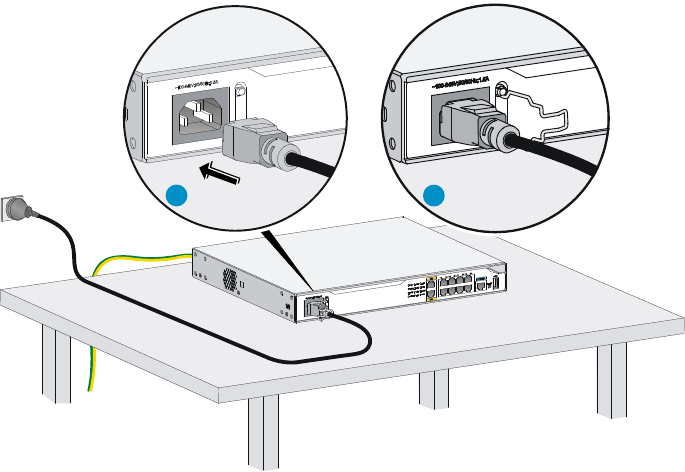

Figure 23 Connecting an AC power cord to the router
Verifying the installation
After you complete the installation, verify that:
• There is enough space for heat dissipation around the router, and the rack or workbench is stable.
• Interface modules are correctly installed.
• The router, rack, and power cord are correctly grounded.
• The correct power source is used.
Powering on the router
Verifying before power-on
Before powering on the router, verify the following items:
• The power modules are correctly installed.
• The power cord and grounding cable are correctly connected.
• The power source voltage meets the requirement of the router.
• The console cable is correctly connected, the terminal or PC used for configuration has started, and
the configuration parameters have been set.
• If a CF card is used, verify that the CF card is in position.
• Make sure the installed interface modules are in position.
1 2
