Appendix B LEDs
Panel LEDs

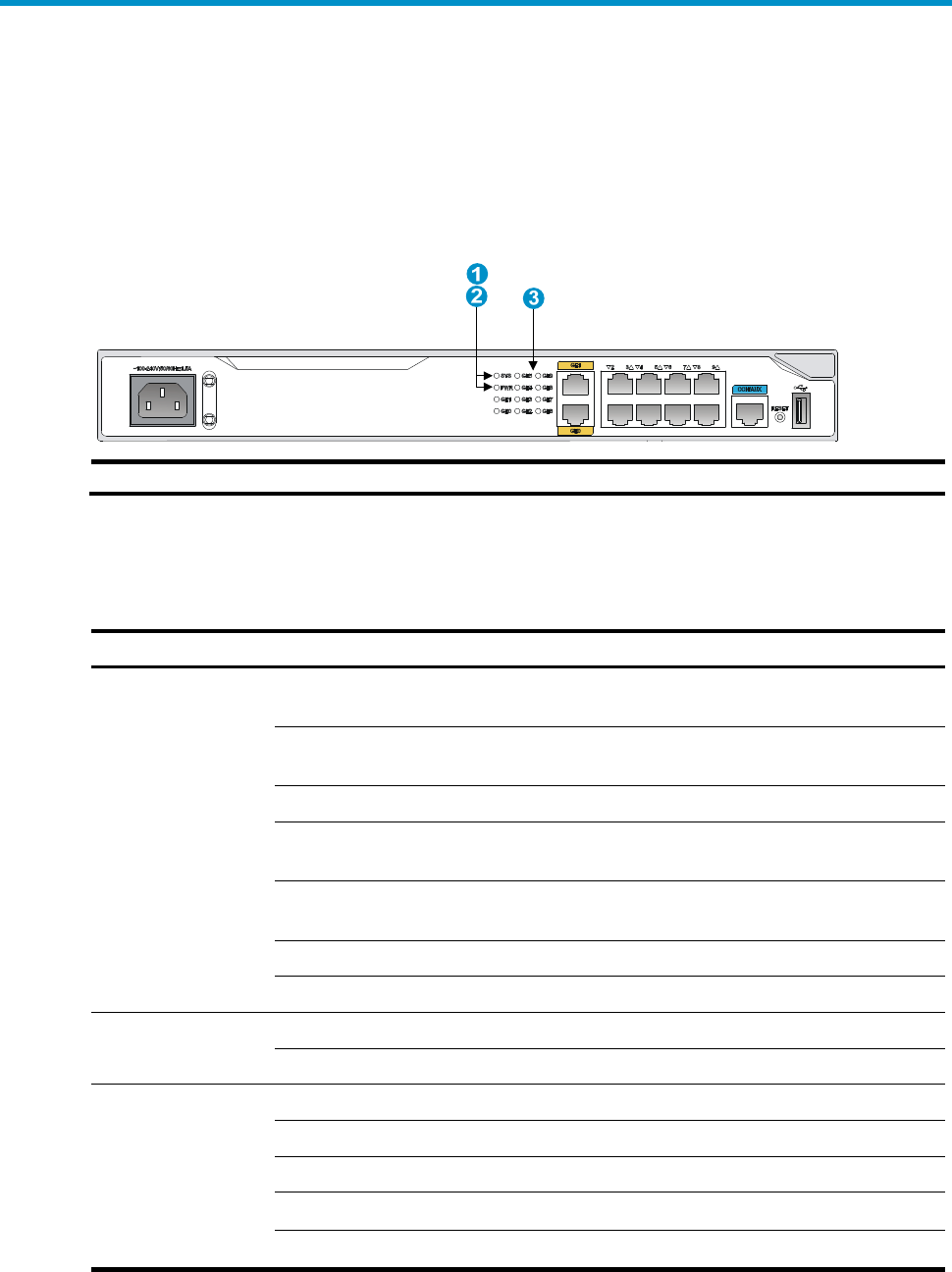

Figure 31 MSR1003-8 LEDs
(1) System LED (SYS) (2) Power supply LED (PWR) (3) Gigabit Ethernet port LED (GE0 to GE9)
LED description
LED State Descri
p
tion
SYS
Flashing green
(1 Hz)
Comware has started with the configuration file and the router has
booted up.
Flashing green
(8 Hz)
The BootWare runs.
Steady green The SDRAM is performing self-test.
Flashing yellow
(1 Hz)
The DDR3 SDRAM has failed the self-test.
Flashing yellow
(8 Hz)
The extended segment does not exist.
Steady yellow The boot image does not exist.
Off No power input, or exceptions have occurred.
PWR
Steady green The power supply is operating correctly.
Off No power input.
GE
Steady green A 1000 Mbps link is present.
Flashing green Data is being received or transmitted at 1000 Mbps.
Steady yellow A 10/100 Mbps link is present.
Flashing yellow
Data is being received or transmitted at 10/100 Mbps.
Off No link is present.
