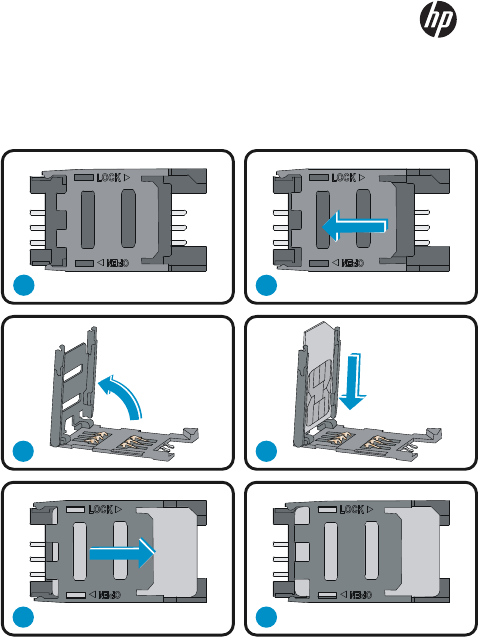

HP MSR 4G SIC Module USIM Card and Antenna Installation Guide Part number: 5998-5199 Installing a USIM card Correct installation 1 2 3 4 5 6 1
Incorrect installation Installing a 4G extender cable Correct installation M6 M3 1 2 M2.
Installing a 4G antenna One 4G extender cable is provided with the interface module. Purchase 4G extender cables as required. Table 1 lists 4G extender cables provided by HP. You can also use 4G extender cables from other vendors, for any consequences resulting from which HP assumes no liabilities. Table 1 HP 4G extender cables J number 4G extender cable JG522A JG666A JG667A HP MSR 4G 2.
>25cm(9.84in) >25cm(9.84in) >25cm(9.84in) 4 >25cm(9.
>25cm(9.84in) >25cm(9.84in) Installing a 4G antenna on a rack Installing a 4G antenna on a wall Prepare M2.9 self-tapping screws yourself. 1 2 5 >25cm(9.
Installing a GPS antenna When you connect a GPS antenna to a JG743A interface module, ensure a minimum distance of 25 cm (9.84 in) between the GPS antenna and any other antenna on the router, and between the GPS antenna and the router.
Regulatory Compliance Information The module must be installed and used in strict accordance with the manufacturer’s instruction as described in the user documentation that comes with this product.
Discipline RF Safety Standards FCC part22 (SIC-4G-LTE-A and SIC-4G-LTE-V) FCC part24 (SIC-4G-LTE-A and SIC-4G-LTE-V) FCC part27 (SIC-4G-LTE-A and SIC-4G-LTE-V) FCC OET 65 MPE(SIC-4G-LTE-A and SIC-4G-LTE-V) RSS-132 (SIC-4G-LTE-A and SIC-4G-LTE-V) RSS-133 (SIC-4G-LTE-A and SIC-4G-LTE-V) RSS-102 (SIC-4G-LTE-A and SIC-4G-LTE-V) EN 301 511 (SIC-4G-LTE-G) EN 301 908 (SIC-4G-LTE-G) EN 62311 (SIC-4G-LTE-G) UL 60950-1 CSA 22.2 No.
WEEE Directive–2002/96/EC The products this manual refers to are covered by the Waste Electrical & Electronic Equipment (WEEE) Directive and must be disposed of in a responsible manner. USA regulatory compliance FCC Part 15 US Federal Communications Commission (FCC) EMC Compliance This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
This device generates and radiates radio-frequency energy. To ensure compliance with the requirements of FCC radio-frequency exposure, a minimum body to antenna distance of 20cm (8 inch) must be maintained when the device is installed and operated, and a minimum distance of 25 cm between the 3G antennas and between the 3G antenna and the WiFi antenna is required to maintain compliance and receiver reliability. Antennas Only use the supplied antenna.
This device must not be co-located or operated in conjunction with any other unauthorized antenna or transmitter. Brazil regulatory compliance Este produto está homologado pela ANATEL, de acordo com os procedimentos regulamentados pela Resolução 242/2000 e atende aos requisitos técnicos aplicados. Para maiores informações, consulte o site da ANATEL – www.anatel.gov.br Documentation To find related documents, browse to the Manuals page of the HP Business Support Center website: http://www.hp.
