Adding a KVM or Video Switch to the Hardware A-5
This example shows a configuration of the hardware with a KVM switch so that the IOP and
CE in each tuple can share a monitor, keyboard, and mouse.

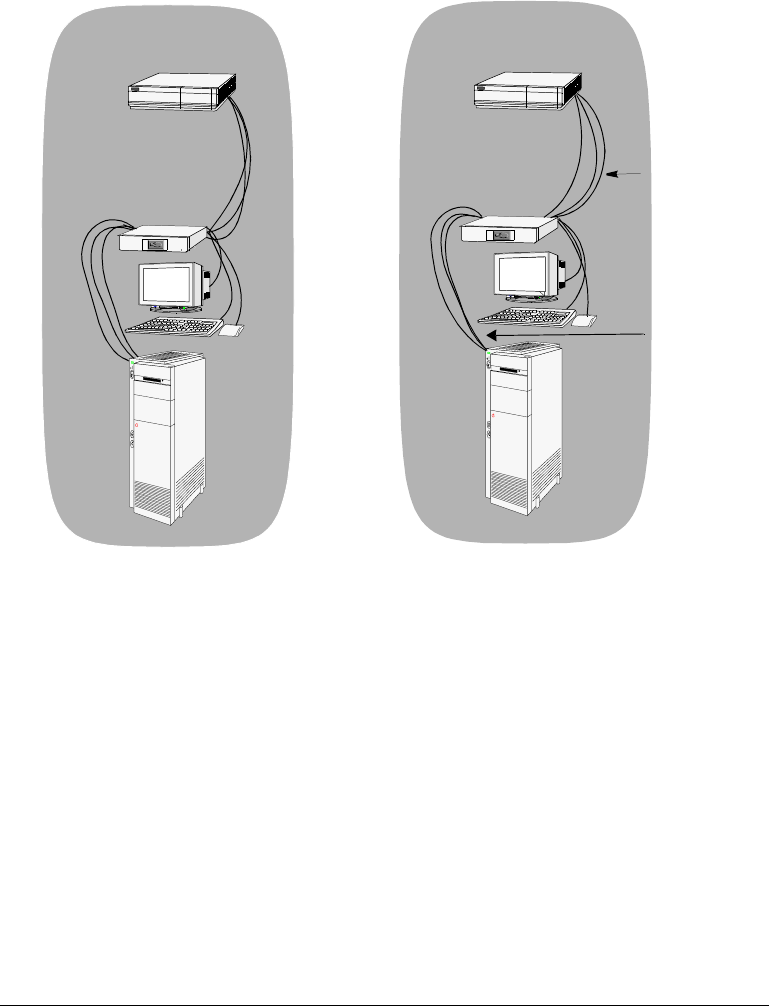

Figure A-2 Hardware Configuration with a KVM Switch for Each Tuple
IOP 2
KVM
CE 2
Tuple 2
Tuple 1
IOP 1
KVM
CE 1
Keyboard,
video, mouse
cables
Keyboard,
video, mouse
cables
Switch
Switch
