Installation and configuration of the HP NetRAID, NetRAID-1 and NetRAID 3Si Adapters

Appendix D Cabling Diagrams
151

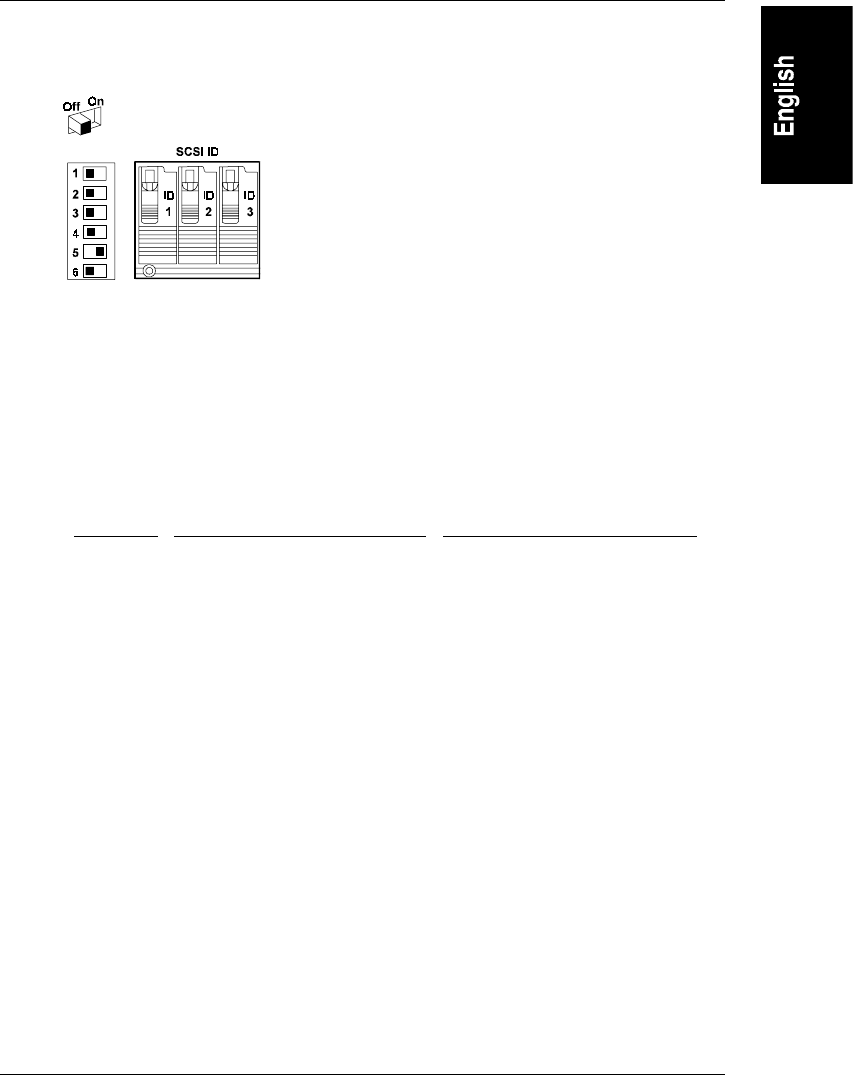

Sample Alternate Switch Settings
Mass Storage Cables
Some of the optional mass storage configurations require additional cables. This
table lists the cables used in configuring mass storage devices for this HP
NetServer. Only these HP cables and adapters are supported:
Cabling
Diagram
Label
Location Description
C52
System backplane (or NetRAID
controller) SCSI connector to hot
swap backplane
3-connector, Wide (68-pin) SCSI
cable
C82
System backplane SCSI
connector to upper shelf SCSI
devices
2-connector, Wide 68-pin SCSI
cable with built-in terminator
D6
System backplane IDE connector
to IDE devices (CD-ROM or
other)
3-connector IDE cable
F6
System backplane FDD
connector to diskette drive
2-connector flexible disk cable
I
2
C
I
2
C cable, system backplane to
hot swap backplane
2-connector I
2
C (3-pin) cable
T
SCSI terminator built into board
or cable
