Installation and configuration of the HP NetRAID, NetRAID-1 and NetRAID 3Si Adapters

Appendix D Cabling Diagrams
161
HP NetServer LXr Pro
CAUTION Before cabling any rack-mounted components, refer to the
HP NetServer Rack Assembly and Cabling Reference Guide
and the documentation for the components.
Non-duplex Cabling to Single-Bus HP NetServer Rack Storage/8

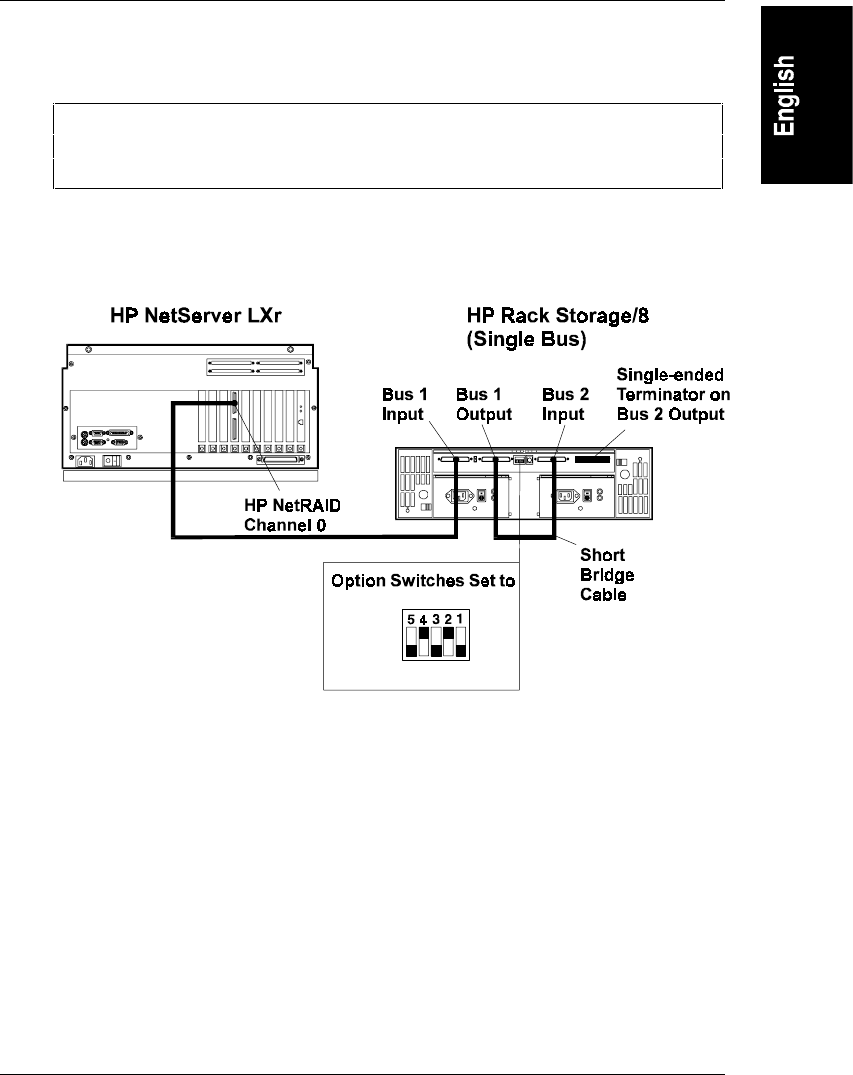

Figure D-8. Cabling One External Channel from an HP NetRAID Adapter in
an HP NetServer LXr to a Single-Bus HP NetServer Rack Storage/8.
(Any external connector for any channel of an HP NetRAID Series adapter
can be used.)
