Installation and configuration of the HP NetRAID, NetRAID-1 and NetRAID 3Si Adapters

Chapter 5 Installation and Configuration

Select Configure Disk Array

If HP Navigator asks you to set the date, time, and so on, do so. The HP

Navigator Main Menu then appears.

1. When the HP Navigator Main Menu is displayed, choose NetServer

Utilities.

2. Choose Disk Array Utility from the NetServer Utilities screen. This

launches the HP NetRAID Assistant utility.

Step G. Configure Arrays and Logical Drives

In this step, for each adapter that need to be configured, you will use Worksheets

A and B to:

• Configure the arrays of physical drives

• Configure the logical drives

HP NetRAID Assistant

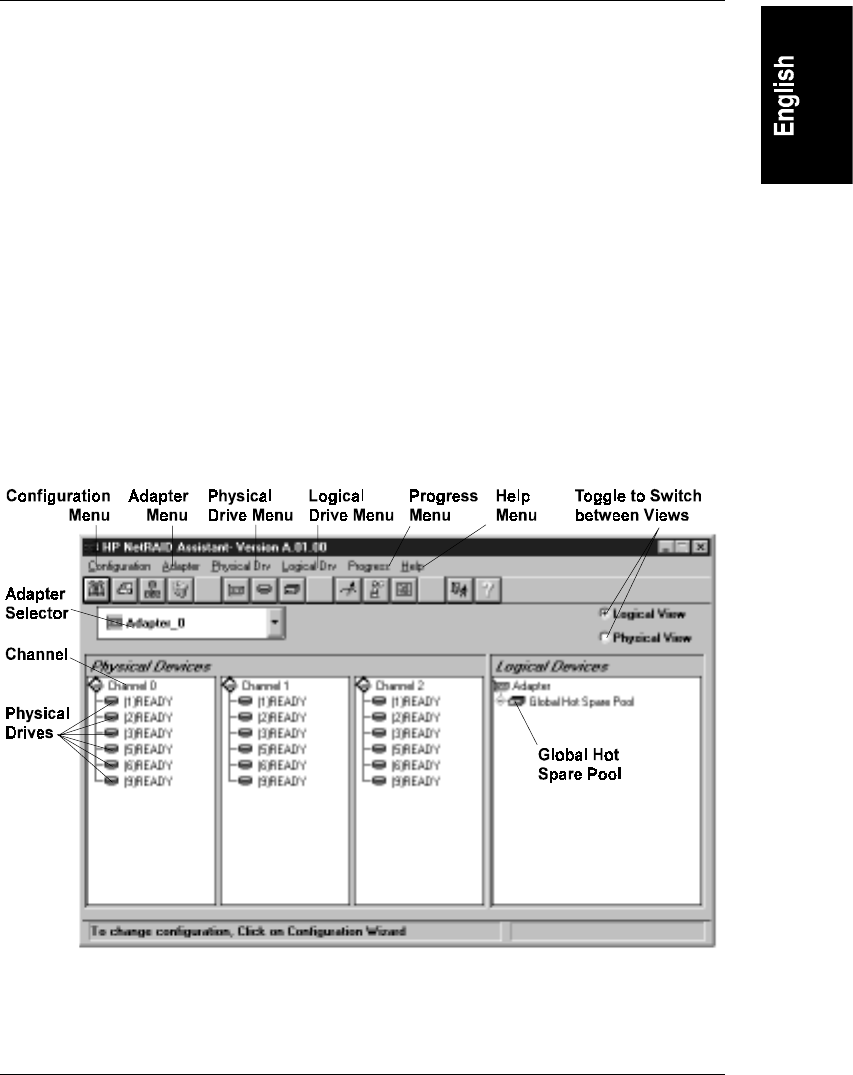

Figure 5-4. HP NetRAID Assistant Window
