HP Netserver LH 3000 FC Config Guide for Windows 2000 Advanced Server Clusters

9
Fibre-channel HBA
with GBIC

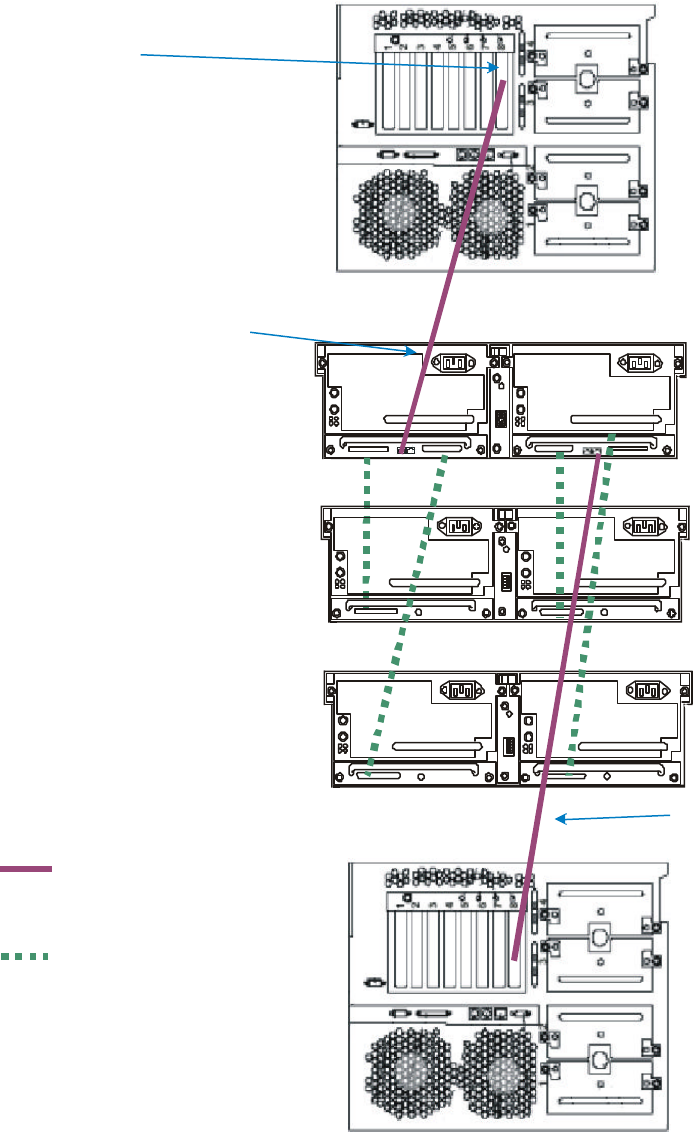

Dashed (green) lines are
offset SCSI cables. See
inside this guide for
specifications.
LEGEND
Solid red lines are copper
fibre channel.
For a direct connection,
copper cable goes to Port ‘x’
on first RS/12FC array
controller.
Copper cable goes
to Port ‘y’ on the
second RS/12FCarray
controller.
NOTES
1. The HBA and NICs may be
installed in PCI slots as follows:
Client LAN AFT team in slots P5 and P6
Intra-cluster LAN (embedded NIC)
FC HBA in P8
2. The bottom two shared
storage devices are SCSI HP Rack
Storage/12’s and are
optional to the cluster
configuration.
HP SPOFless Microsoft Cluster using HP Rack Storage/12FC and Rack Storage/12
with Direct Connections
