HP Netserver LXr Pro8 30/FC Config Guide for Windows NT4.0 Clusters

7
3 Shared Storage Hardware Setup
This section contains instructions for installing the hardware components of the HP AutoRAID Disk Array
Model 12H for use as shared storage on your NT cluster.
NOTE Refer to the HP AutoRAID Disk Array Model 12H User’s And Service Manual for
instructions on rack mounting the disk array.
Identify Controls and Connectors
The various controls and connectors used during installation of the HP AutoRAID Disk Array Model 12H are
shown in Figure 1, Figure 2, and Figure 3. Take a moment to familiarize yourself with the location of the
components before beginning the hardware installation.

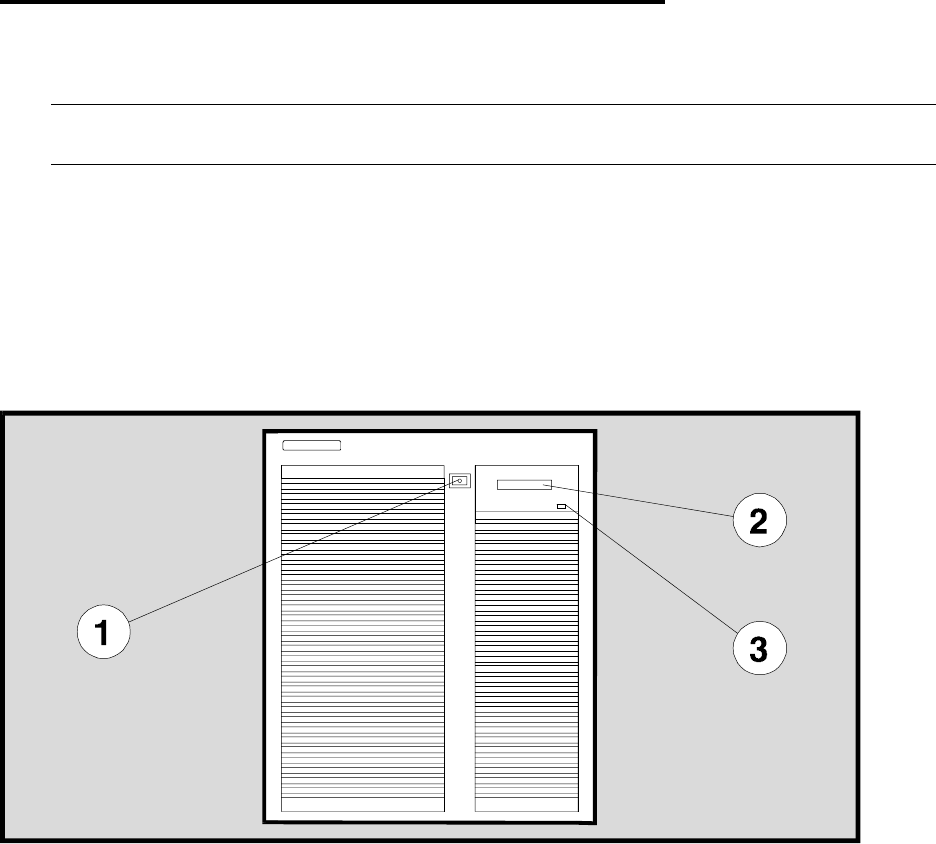

1 – Power/Standby Switch 2 – Control Panel Display 3 – Control Panel Status Light
Figure 1. Disk Array Front Panel
