Chapter 3 Opening and Closing the

HP NetServer

Spring-loaded

hinge pins

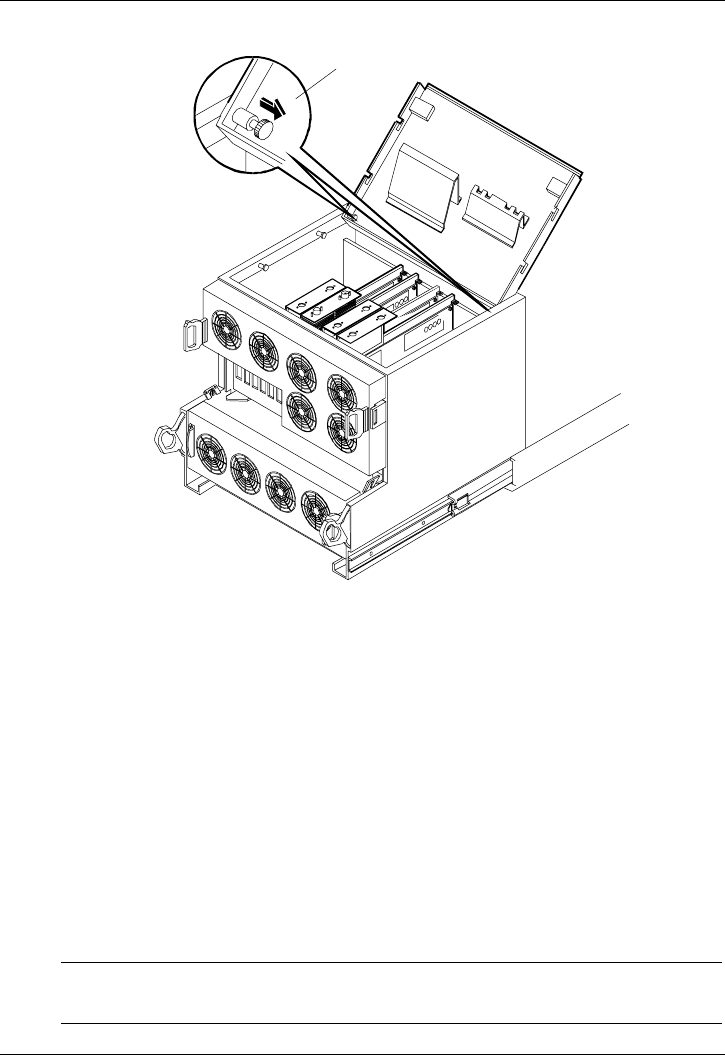

Figure 3-8. Top Cover in Open Position

7. When the NetServer is mounted in a rack, adjacent components can block

the cover from opening fully. If this happens, remove the cover entirely:

a. Swing open the cover as far as possible.

b. Pull back one of the spring-loaded hinge pins on the underside of the

cover. See Figure 3-8.

c. Lift the cover off.

d. To replace the cover, pull back one of the spring-loaded hinge pins,

and then position the cover so the hinge pins line up with the

matching holes in the satellite chassis. (See Figure 3-8.) Release the

pin so that it snaps into the hole.

NOTE As a safety measure, and to avoid cooling problems, you must

always replace the cover before turning on the HP NetServer.
