Chapter 6 Installing Additional Boards

d. Embedded SCSI controllers 1 through 7. (These controllers are only

accessible in servers equipped with the optional SCSI Extender Board

accessory.)

e. PCI slots 1 through 8.

4. When you have selected a slot, remove its slot cover on the I/O panel.

5. Push the board down into its connector on the system board (Figure 6-2).

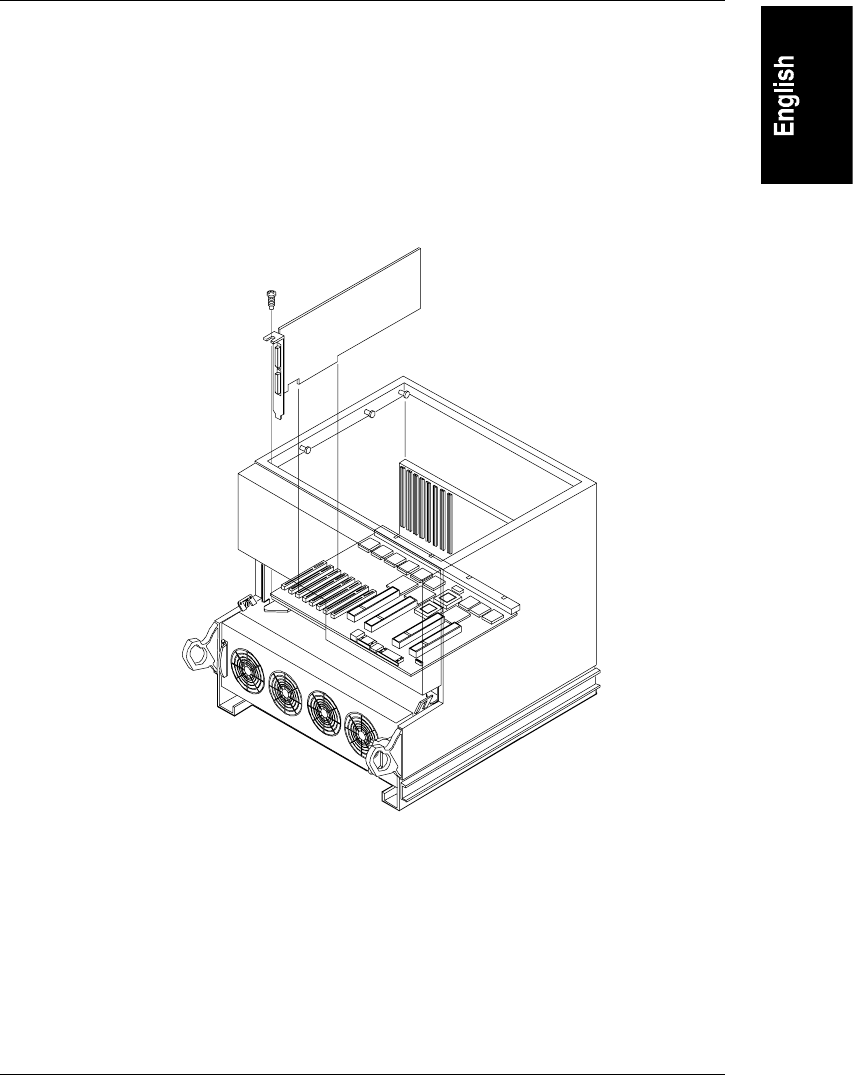

Figure 6-2. Inserting the Board

6. Screw the board's I/O bracket to the I/O panel.

7. If the board you added must be cabled to the system board or chassis,

make sure that the cable is properly attached. Refer to the board

documentation.

8. Close the top cover. (See Chapter 3.)
