Chapter 6 Installing Additional Boards

Terminator in Slot B1

Terminator in Slot B2

Processor Board in Slot A1

Terminator in Slot A2

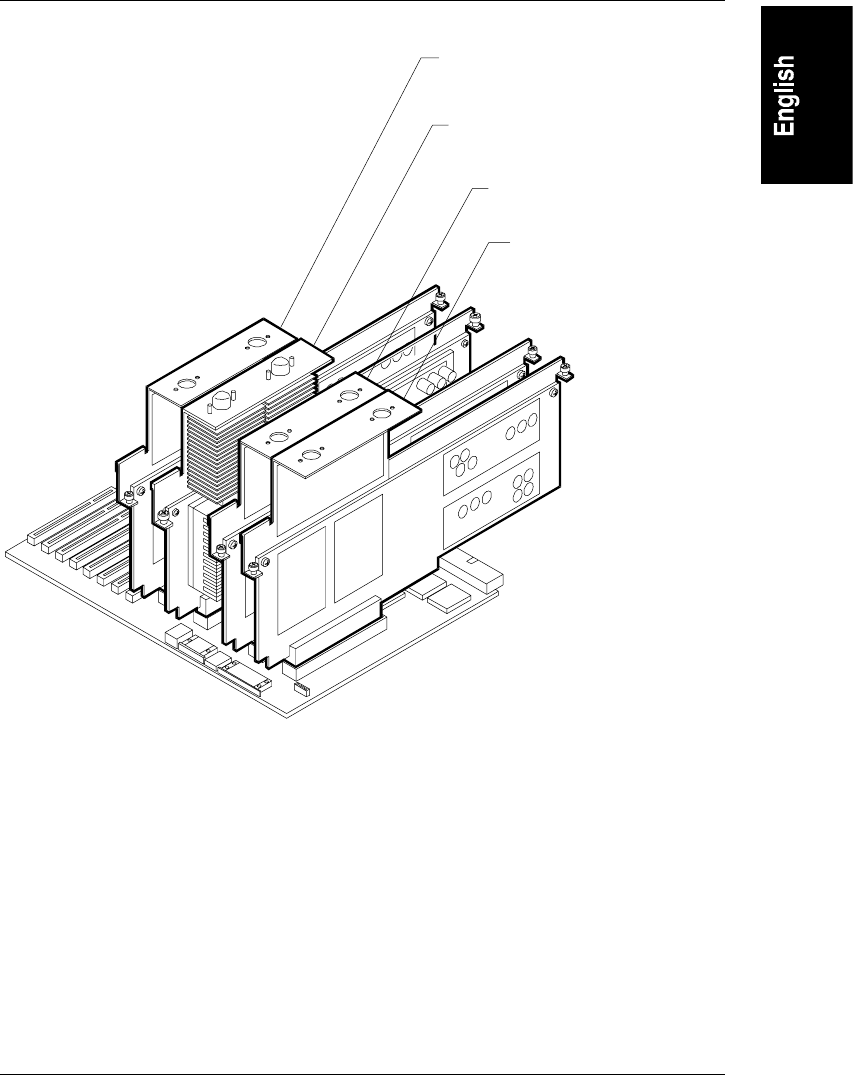

Figure 6-4. Processor and Terminator Boards on the System Board

8. Using a Phillips head screwdriver, unscrew the two mounting screws that

secure the terminator board in place.

9. Grasp the board you are removing, and lift firmly. Place it on the

antistatic mat.

10. If you are installing more than one 200 MHz/1MB processor board,

remove additional terminator boards as necessary.
