HP Netserver LXr Pro8 User Guide

Chapter 7 Mounting the Server in the Rack

5. Repeat steps 1 through 6 to attach the second rail to the left-hand rack

columns.

Step 2: Placing Tinnerman Nuts on the Front Columns

1. Place two Tinnerman nuts on the right front column of the rack. See

Figure 7-4.

• Place the first nut in the twelfth hole above the bottom of the

mounting rail.

• Place the second nut in the twenty-sixth hole above the bottom of the

rail.

When the HP NetServer is installed on its rails, these nuts must line up

with the slots in the flanges on the front of the HP NetServer. You will

insert screws through the flanges' holes and into the Tinnerman nuts.

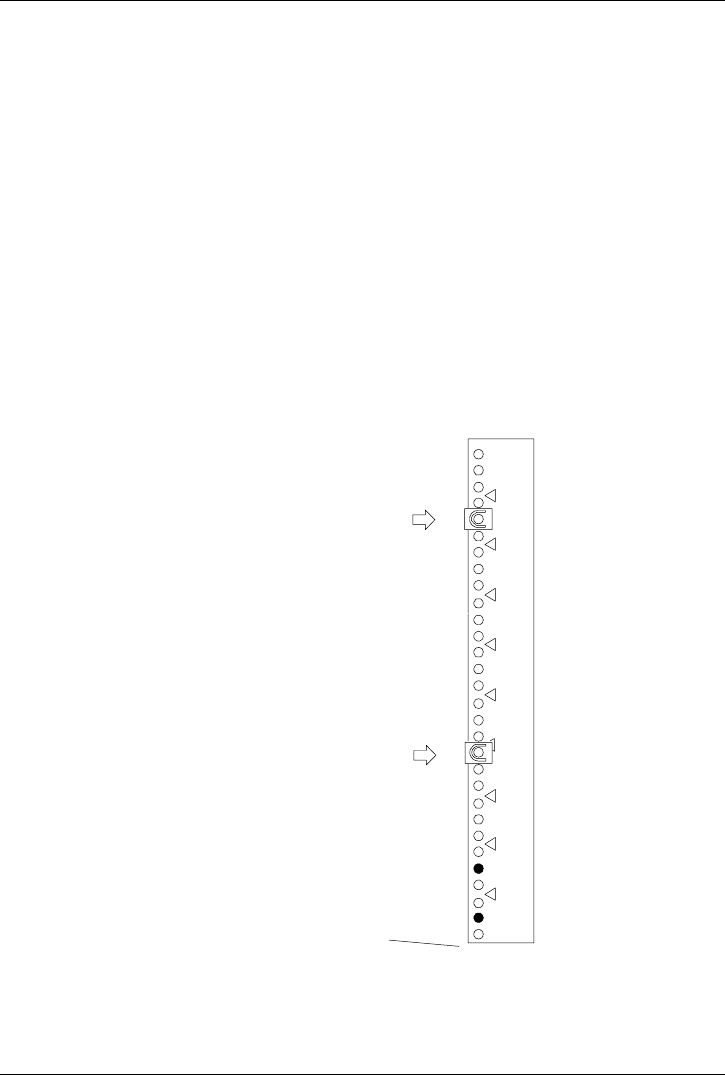

Twelfth Hole

Twenty-Sixth

Hole

Bottom of

mounting rail

Figure 7-4. Placing Tinnerman Nuts on the Front Column
