7. At the rear end of each slide are two mounting holes. At this point, they

should line up with two notches in the rear of the NetServer. Drive a 5mm

M4 flathead Phillips screw through each hole to fasten the rear of the base

chassis in the rack. See Figure 7-6.

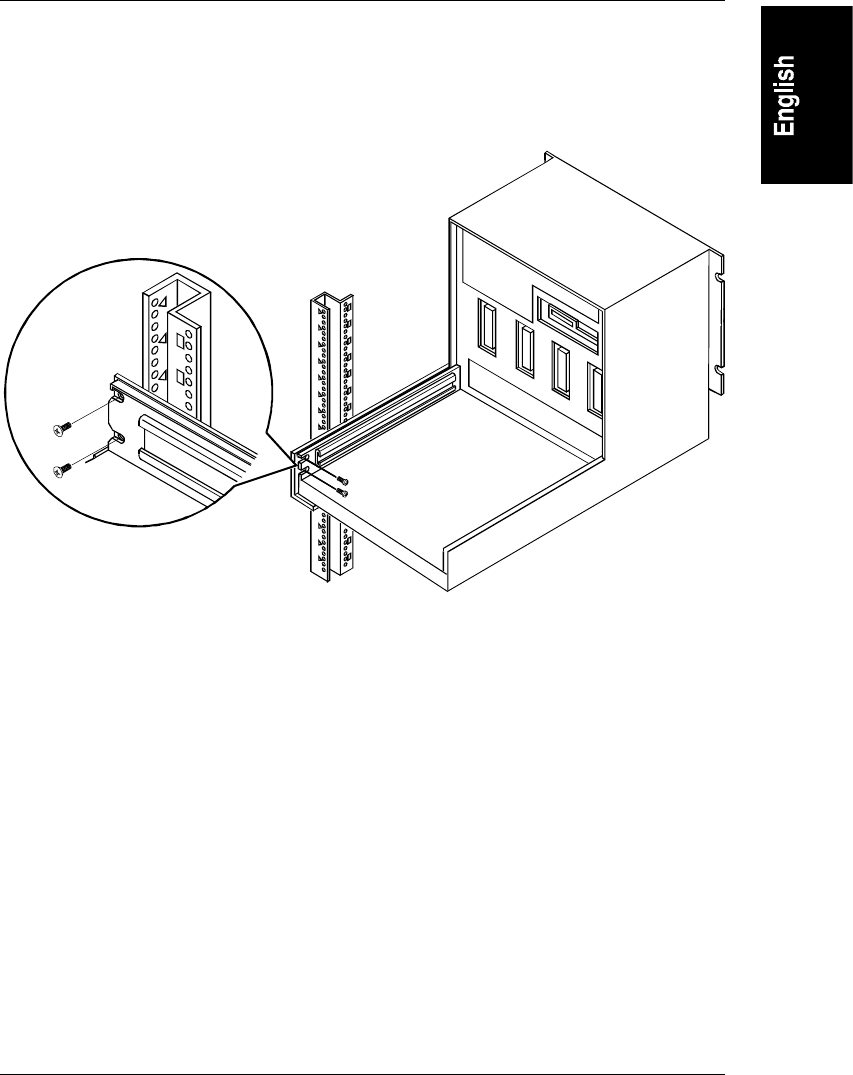

Figure 7-6. Fastening the Rear of the Base Chassis to the Rack

8. Reattach the satellite chassis to the base chassis. See Chapter 3 for

instructions.

9. Reinstall the power supplies in the front of the base chassis.

For cable management information, refer to HP NetServer Assembly and Cabling

Reference Guide.

Step 4: Attaching the Front Bezel

The HP NetServer's front bezel ships separately from the server itself. Do not

install the bezel and control panel cover until the server is mounted in the rack.

To install the front bezel:

1. Hold the front bezel in front of the HP NetServer (Figure 7-7). Line up the

connectors on the back of the bezel with the matching mounting pins on

the front of the server. Push the bezel onto the pins until you hear a click.
