Installation and configuration of the HP NetRAID, NetRAID-1 and NetRAID 3Si Adapters

Appendix D Cabling Diagrams
150
HP NetServer LC II
Duplex, Disk Array

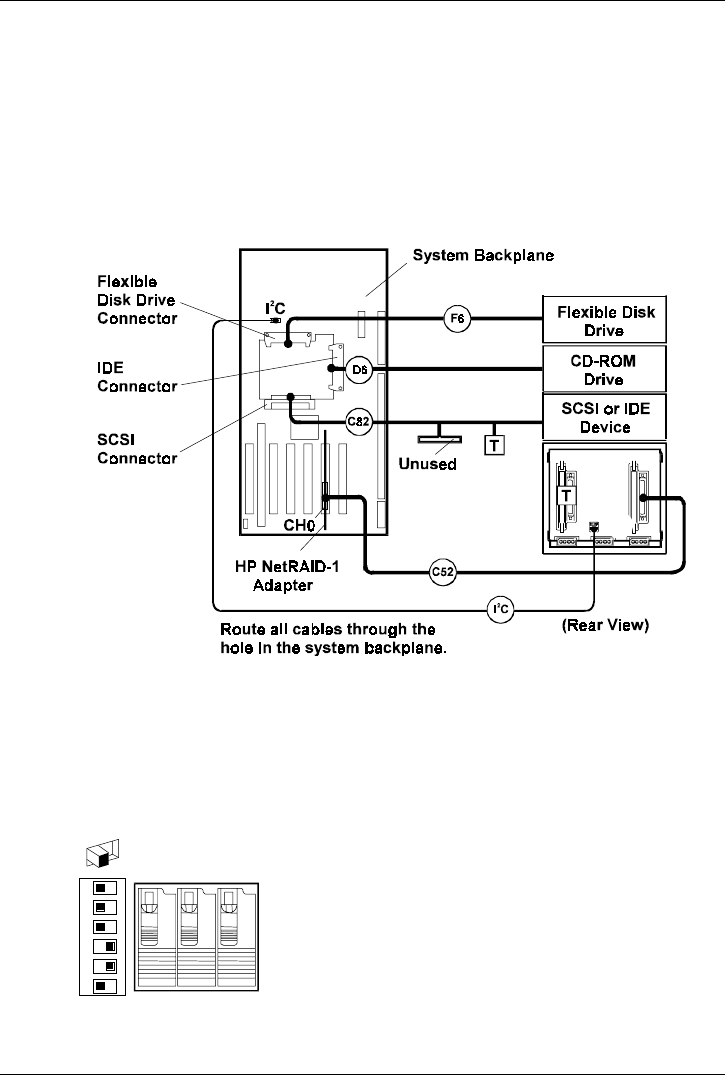

Figure D-2. Duplex, Disk-Array Cabling of Hot-Swap Model
HP NetServer LC II with HP NetRAID-1 Adapter
Default Switch Settings
1
2
3
4
5
6
ID
3
ID
0
ID
1
On
Off
These are the default SCSI switch settings for this
configuration. SCSI ID 2 is reserved for an optional
DAT (Digital Audio Tape) drive that can be
installed in upper shelf 3 or 4. The standard
CD-ROM drive is shipped with SCSI ID 5.
