Installation and configuration of the HP NetRAID, NetRAID-1 and NetRAID 3Si Adapters

Appendix D Cabling Diagrams
155
Duplex Cabling

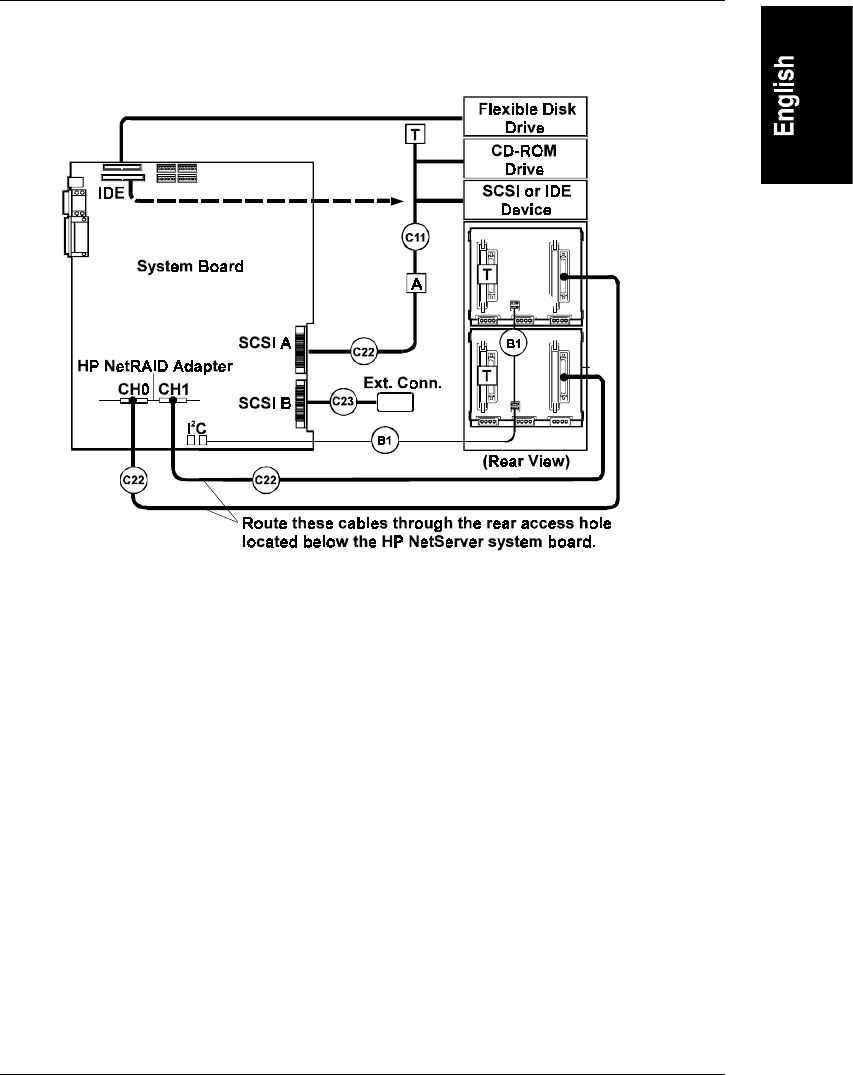

Figure D-5. Duplex Cabling of HP NetServer LH Pro or LH II with an
HP NetRAID Adapter
