Installation and configuration of the HP NetRAID, NetRAID-1 and NetRAID 3Si Adapters

Appendix D Cabling Diagrams
159
HP NetServer LXe Pro
Non-Duplex, Disk Array
CAUTION The HP NetServer LXe Pro comes with one power supply
module. Do not attempt to run the HP NetServer with any
mass storage devices installed in the right side (including
shelves B1 or B2, illustrated below) without first installing a
second power supply module. Installing any mass storage
devices on the right side requires the addition of a second
power supply module.

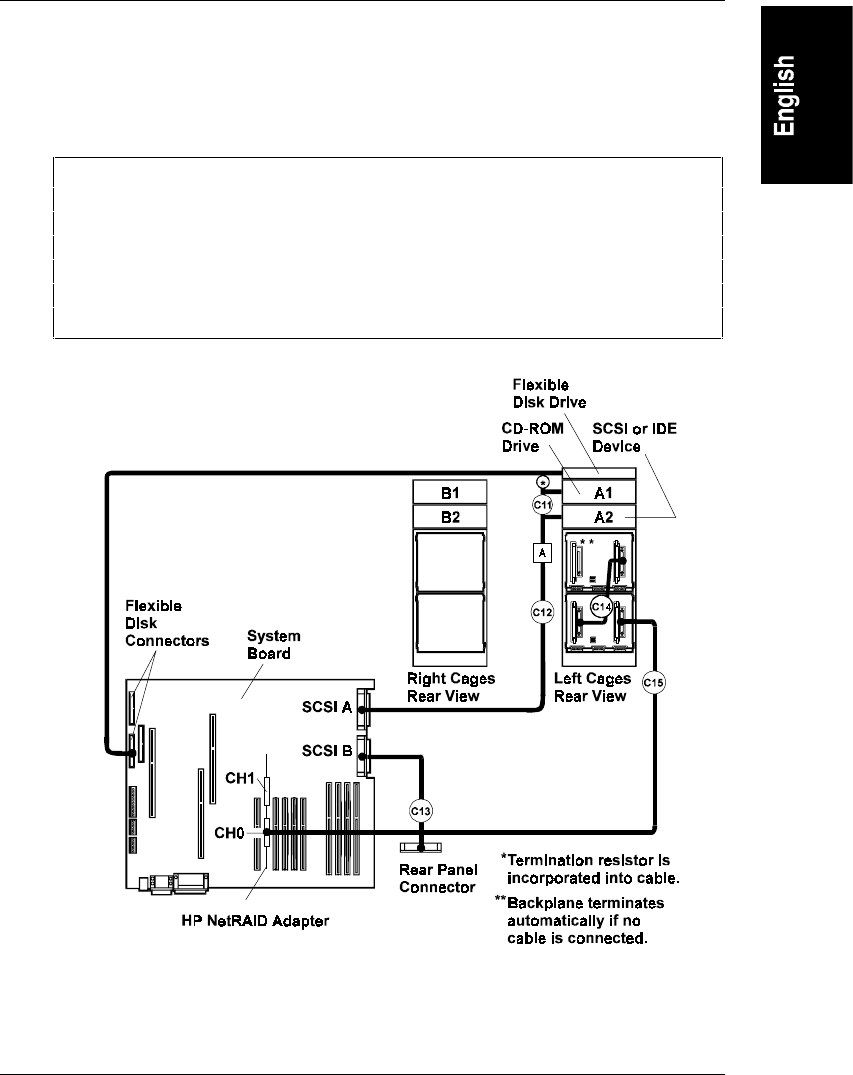

Figure D-7. Non-duplex, Disk-Array Cabling of HP NetServer LXe Pro with
an HP NetRAID Adapter
