HP NetServer LXr Pro8
CAUTION Before cabling any rack-mounted components, refer to the
HP NetServer Rack Assembly and Cabling Reference Guide
and the component manuals.
Non-duplex Cabling to Single-Bus HP NetServer Rack Storage/8

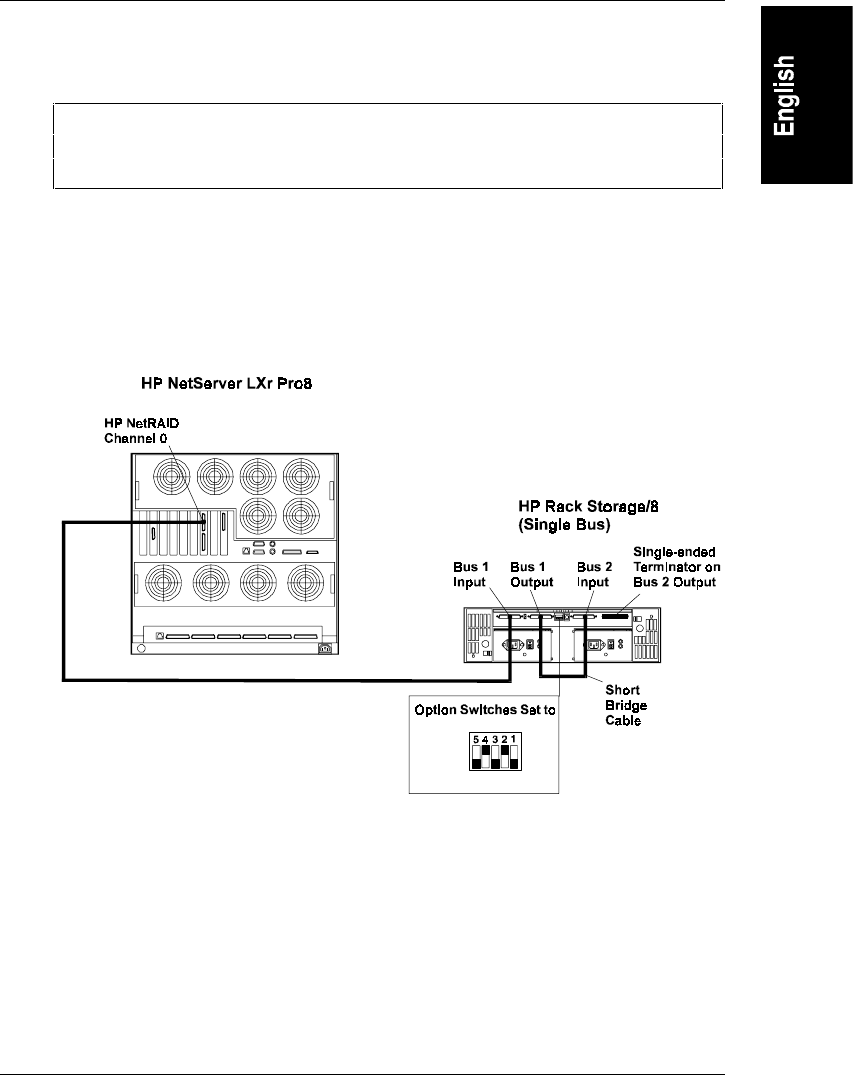

Figure D-10. Cabling One External Channel from an HP NetRAID Adapter in
an HP NetServer LXr Pro8 to a Single-Bus HP NetServer Rack Storage/8.
(Any external connector for any channel of an HP NetRAID Series adapter
can be used.)
