Installation and configuration of the HP NetRAID, NetRAID-1 and NetRAID 3Si Adapters

Chapter 5 Installation and Configuration

Define Logical Drives

NOTE Refer to Worksheet B when defining logical drives.

After you finish defining arrays and hot spares, and click Next, the HP NetRAID

Assistant Wizard Logical Drive Definition window appears. A sample window is

shown in Figure 5-8. The window is ready for you to define Logical Drive 0.

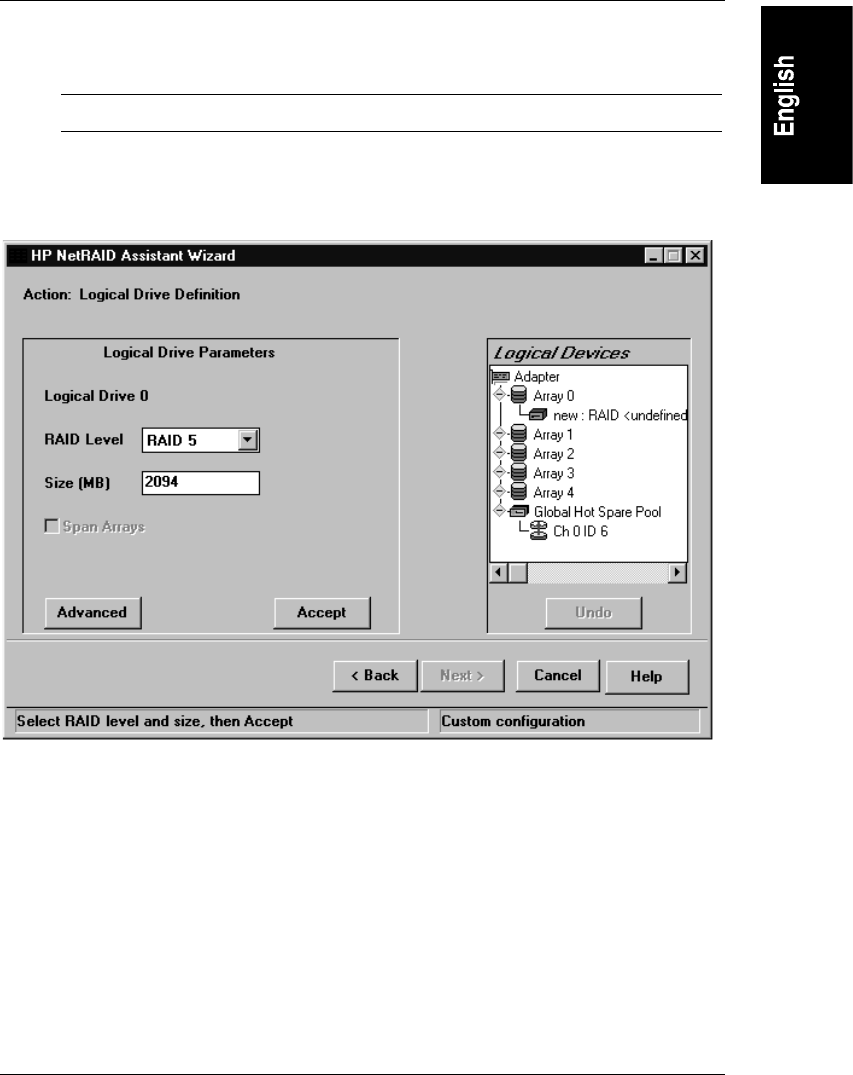

Figure 5-8. HP NetRAID Assistant Wizard Logical Drive Definition Window

◊◊ The Logical Drive Parameters box shows the number of the logical drive

being defined and has boxes to set its RAID level and size.

◊◊ The Span Arrays check box turns array spanning on or off.

◊◊ The Advanced button leads to more parameters, which are preset but can

be changed.
